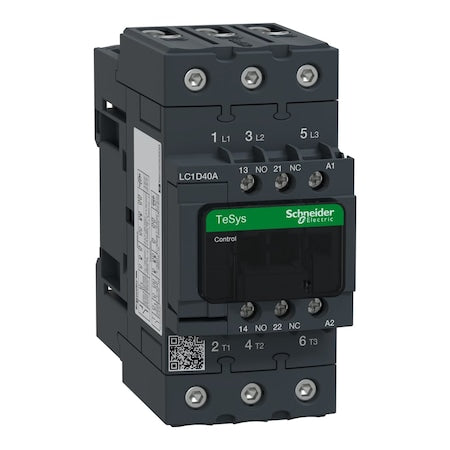

Schneider Electric LC1D40AB6 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D40AB6 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D40AB6
$296.47 USD
$296.47 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing electromagnetic switch rated for use in IEC-standard control panels. Rated for operation with a 24V AC coil; auxiliary contacts are configured as 1NC/1NO. The device uses screw clamp terminals and is part of the TeSys Deca series, rated for operation within the specified voltage range up to 690V AC; conforms to IP20 ingress protection standards; compatible with DIN rail or plate mounting methods within standard installation practices. It is specified for three-phase systems and mechanical durability up to 6,000,000 cycles; electrical durability ratings up to 1,400,000 (AC-1), 1,500,000 (AC-3/AC-3e) cycles.

- Coil Voltage: 24V AC

  • - Contactor Style: IEC
  • - Item: IEC Magnetic Contactor
  • - Number of Poles: 3
  • - Phase: Three
  • - Reversing Capability: Non-Reversing
  • - Auxiliary Contacts: 2 (1NC/1NO)
  • - Includes Auxiliary Contacts: Yes
  • - Terminal Connection Type: Screw Clamp
  • - Voltage Rating: Up to 690V AC
  • - Ingress Protection: IP20 (conforms to IP20 ingress protection standards)
  • - Mounting: Compatible with DIN rail or plate mounting methods within standard installation practices
  • - Mechanical Durability: Up to 6,000,000 cycles
  • - Electrical Durability: Up to 1,400,000 (AC-1); 1,500,000 (AC-3/AC-3e) cycles
  • - Frequency: 60 Hz
  • - Full Load Amps - Inductive: 150 A
  • - Full Load Amps - Resistive: 200 A
  • - Full Load Current - Inductive: 40 A
  • - Full Load Current - Resistive: 200 A
  • - Horsepower (Single-Phase 120V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Horsepower (Single-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Horsepower (Three-Phase 208V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Horsepower (Three-Phase 240V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Horsepower (Three-Phase 480V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Horsepower (Three-Phase 600V AC): Rated horsepower at specified voltages and phases per manufacturer specifications
  • - Overall Depth: 4.72 in
  • - Overall Height: 4.8 in
  • - Overall Width: 2.17 in
  • - Series: TeSys Deca
  • - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • - Resistance Properties: Fire Resistant, Insulation Resistant
    • 🏢
