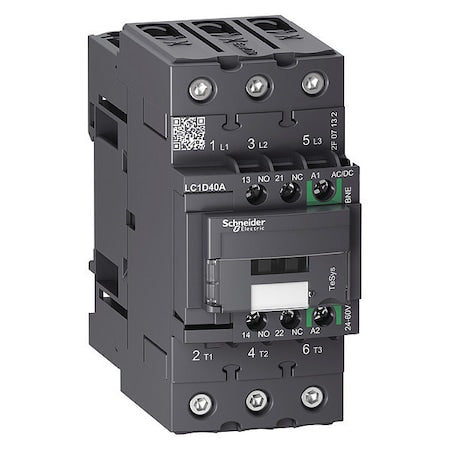

• Schneider Electric LC1D40ABNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D40ABNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D40ABNE - IEC Magnetic Contactor, 1 NC/1 NO, 24 V-60 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D40ABNE
$330.26 USD
$330.26 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The item is an IEC Magnetic Contactor from Schneider Electric in the TeSys Deca family. It is a non-reversing, three-pole (3P) contactor with a 24–60 V AC/DC coil, rated for operation with motor control and resistive loads within specified parameters. It uses screw clamp terminals for the control circuit and EverLink power connections for the power circuit, and it includes auxiliary contacts (1NO/1NC); protective cover included; enclosure not provided.

Key features

  • - Coil voltage: 24–60 V AC/DC
  • - Poles and contacts: 3 main poles; 3 main contacts; 2 auxiliary contacts (1NO/1NC)
  • - Reversing: Non-Reversing; Contactor style: IEC; Series: TeSys Deca
  • - Frequency: 50/60 Hz; Maximum voltage: 690V AC
  • - Enclosure and protection: No Enclosure; IP20
  • - Mounting and mounting options: DIN Rail, Plate; Mounts On: Plate, Rail
  • - Weight and dimensions: Net weight 0.992 kg; Overall height 4.8 in; Width 2.17 in; Depth 4.72 in
  • - Electrical durability: 2,000,000 cycles (Electrical); 6 Mcycles (Mechanical)
  • - Inrush/holding power: Inrush 15 VA; Hold 1 VA
  • - Ratings: Rated making capacity up to 800 A @ 440V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • - Additional specs: Impedance 1.5 mΩ; Impulse withstand voltage 6 kV; Shock resistance 15 G (Closed), 10 G (Open); Signalling circuit frequency 25–400 Hz; Maximum operating temperatures: 140°F (ambient) and 850°C (max)
    • 🏢
