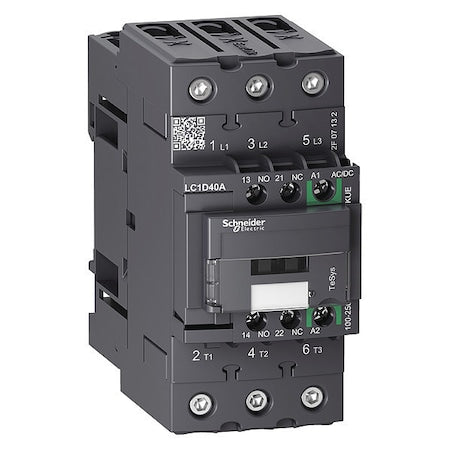

• Schneider Electric LC1D40AKUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D40AKUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D40AKUE - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D40AKUE
$320.51 USD
$320.51 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

Schneider Electric IEC Magnetic Contactor, 3-pole, non-reversing, with 1NO/1NC auxiliary contacts. It uses a coil voltage of 100–250 V AC/DC and is rated for operation within specified motor control and resistive-load application parameters.

- Coil Voltage: 100–250 V AC/DC

  • - Poles/Main Contacts: 3 poles; 3 normally open main contacts
  • - Auxiliary Contacts: 2 total; configuration 1NO/1NC
  • - Reversing: Non-Reversing
  • - Frequency: 50/60 Hz
  • - Rated Voltage: 690 V AC
  • - Full Load Amps: Resistive 60 A; Inductive 40 A
  • - Rated Making Capacity: 800 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
  • - Electrical Operating Durability: 2,000,000 (Power Circuit); 700,000 (Signalling Circuit)
  • - Mechanical Durability: 6 Mcycles
  • - Impulse Withstand Voltage: 6 kV
  • - Enclosure / IP: Open design; IP20 rating, suitable for indoor environments
  • - Dimensions: Depth 4.72 in; Height 4.8 in; Width 2.17 in
  • - Net Weight: 0.992 kg
  • - Mounting: DIN Rail, Plate
  • - Environmental: Mercury Free; Pollution Degree 3
  • - Wiring: Compatible with standard wiring connections; optional protective covers as applicable
  • - Standards: UL Listed, CE, CSA, EN/IEC 60947-4-1, EN/IEC 60947-5-1, CCC, KC, UKCA
  • - Phase: Three
  • - Impedance: 1.5 mΩ
  • - Hold VA: 1.8 VA
  • - Inrush VA: 18 VA
  • - Switching: Signalling Circuit 5 mA; 17 V
  • - Non-Overlap Time: 1.5 ms
  • - Overvoltage Category: CAT III
  • - Maximum Temperature: maximum temperature ratings are based on standard operating conditions (note: actual device temperature limits should be verified)
  • - Maximum Operating Temperature: 140°F
  • - Maximum Voltage Rating: 690 V AC
  • - Releasable / Non-Reversing: Non-Reversing
  • - Fuse Amps / Protection: Not listed (include if needed)
    • 🏢
