• Schneider Electric LC1D40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

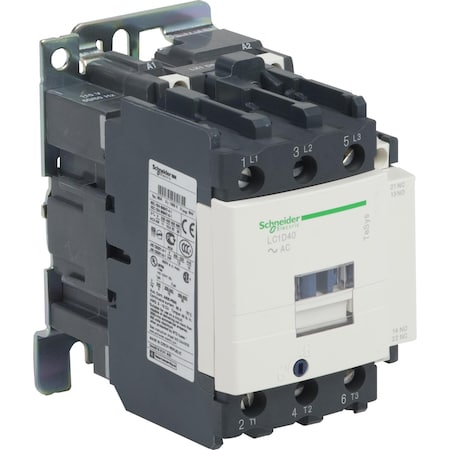

Schneider Electric LC1D40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D40U7
$427.27 USD
$427.27 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for use in control circuit applications within specified parameters. It features a 240 V AC coil and 1NC/1NO auxiliary contacts, with screw clamp terminals for wiring. The unit is rated for operation with motors and resistive loads within specified ratings, and is part of the LC1D series with mounting options on Plate or Rail.

Key features

  • - Poles: 3; Auxiliary contacts: 1NC/1NO; Coil voltage: 240 V AC
  • - Terminals: Screw Clamp; Mounting: Plate, Rail; Series: LC1D
  • - IP rating: IP2X; includes a protective cover (if applicable)
  • - Rated voltage: 690 V AC; Full load amps: 60 A resistive, 40 A inductive
  • - Rated making/breaking capacity: 800 A @ 440 V (Power Circuit); 140 A (AC Control Circuit); 800 A @ 440 V (Breaking)
  • - Fuses: 10 A (Control Circuit); 80 A (Type 1 & 2 Power Circuit)
  • - Power ratings: provided according to standard testing conditions; actual performance may vary based on application
  • - Dimensions and weight: Width 75 mm; Depth 119 mm; Height 127 mm; Net weight 1.4 kg
  • - Operating characteristics: operating times are typical values under specified test conditions; actual operation may vary
  • - Shock/Vibration: shock and vibration specifications are based on standardized testing procedures; do not imply safety or longevity guarantees
  • - Standards: IEC 60947-5-1, IEC 60947-4-1, UL 508, EN 60947-4-1, EN 60947-5-1, CSA C22.2 No 14, and others
  • - Working height: Up to 9842.52 ft; Max temperature: 850°C
    • 🏢
