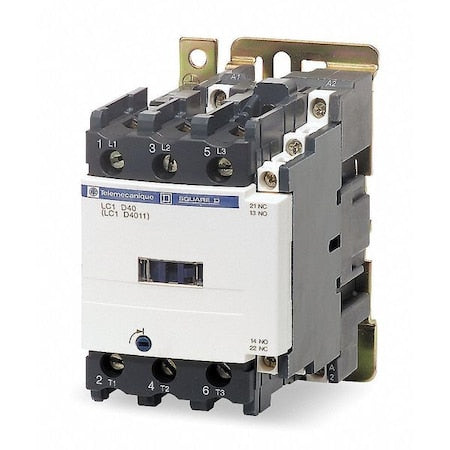

• Schneider Electric LC1D50AT7 - IEC Magnetic Contactor, 1 NC/1 NO, 480 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D50AT7 - IEC Magnetic Contactor, 1 NC/1 NO, 480 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D50AT7 - IEC Magnetic Contactor, 1 NC/1 NO, 480 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D50AT7
$331.35 USD
$331.35 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

Schneider Electric’s IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switching device (IEC style) rated for controlling motor and resistive load circuits within specified parameters. It features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total) and 3 normally open main contacts. The unit uses Screw Clamp Terminals for the control circuit and EverLink BTR screw connectors for the power circuit. It is part of the TeSys Deca series, compatible with DIN Rail or Plate mounting configurations; enclosure not included, and is rated for operation at 50/60 Hz within the specified voltage range up to 690V AC.

Key features

  • - non-reversing action (no guarantee of specific operational behavior)
  • - Poles/Main Contacts: 3 poles, 3 normally open main contacts
  • - Auxiliary Contacts: 2 total (1NO/1NC)
  • - Coil Voltage: 480 V AC; Hold VA: 13 VA
  • - Frequency: 50/60 Hz
  • - Maximum Voltage Rating: 690V AC
  • - Full Load Amps: rated for full load currents up to these values under specified conditions
  • - Series: TeSys Deca
  • - Enclosure: No Enclosure; IP20
  • - Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • - Dimensions: 4.72 in depth × 4.8 in height × 2.17 in width
  • - Weight: 0.855 kg
  • - Operating Times: typical operating times based on testing conditions, not guaranteed performance durations
  • - Durability: expected durability based on testing standards, actual lifespan may vary
  • - Short-Time Withstand: capable of handling short-duration current surges up to specified ratings under test conditions
  • - Protection/Extras: Embedded Surge Suppressor: No; Protective Cover: Yes; Includes Everlink Power Connections
  • - Fusing: 10 A (Signalling), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
  • - Standards/ Certifications: EN 60947-4-1, EN 60947-5-1, UL 508, UL Listed, and others
    • 🏢
