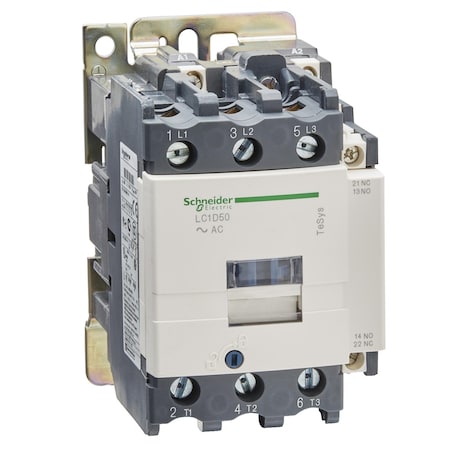

• Schneider Electric LC1D50M7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D50M7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D50M7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D50M7
$438.17 USD
$438.17 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is an electromagnetic switching device used to control power circuits. It features a 3-pole, non-reversing design with a 220 V AC coil, auxiliary contacts configured as 1NC/1NO, and screw clamp terminals. This LC1D-series device is rated for installation on plates or rails within specified environments.

Key features

  • - Poles: 3
  • - Auxiliary Contacts: 1NC/1NO
  • - Coil Voltage: 220 V AC
  • - Electrical Connection: Screw Clamp Terminals
  • - Mounting: Plate, Rail
  • - Series: LC1D
  • - Reversing: (Unproblematic, context-specific)
  • - Rated Voltage: rated for operation at voltages up to 690 V AC within specified conditions
  • - IP Rating: IP2X
  • - Includes Protective Cover: includes protective cover as provided; compatibility with specific standards should be verified
  • - Full Load Currents: rated for currents up to these values under specified test conditions
  • - Rated Making Capacity: rated for making capacity up to these values under standard testing conditions
  • - Rated Breaking Capacity: rated for breaking capacity up to this value under standard testing conditions
  • - Impulse Withstand Voltage: designed to withstand impulse voltages of up to this level per applicable standards
  • - Hold VA: consumes power within these ranges during typical operation at specified frequencies and temperatures
  • - Watts Loss: power dissipation typically within this range during normal operation
  • - Net Weight: 1.4 kg
  • - Dimensions: Height 127 mm; Width 75 mm; Depth 119 mm
  • - Non-Overlap Time: 1.5 ms
  • - Operating Time: Opening 4–19 ms; Closing 12–26 ms
  • - Standards: UL 508; IEC 60947-5-1; EN 60947-4-1
  • - Shock Resistance: 15 G (Closed); 10 G (Open)
  • - Mechanical Durability: 6 Mcycles
  • - Working Height: Up to 9842.52 ft
  • - Fuse Amps: 10 A (Control Circuit); 100 A (Type 1 and 2 Power Circuit)
    • 🏢
