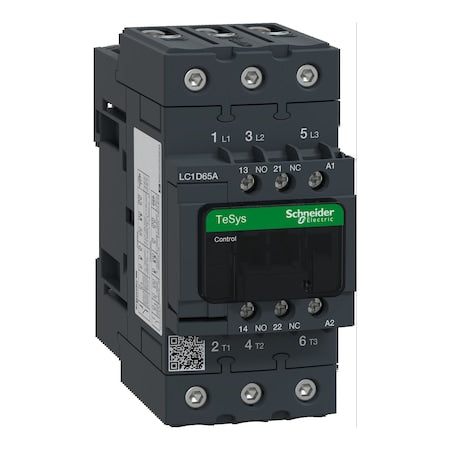

• Schneider Electric LC1D65AG7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D65AG7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D65AG7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D65AG7
$401.11 USD
$401.11 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor, TeSys Deca, is a 3-pole, non-reversing, coil-operated switching device rated for operation within IEC standards. It features 3 main normally-open contacts and 2 auxiliary contacts (1NO/1NC), with a 120 V AC coil and screw clamp terminals. Mounted on DIN rail or plate, it has an open design with IP20 protection rating and is rated for use with motor control and resistive loads at 50/60 Hz within specified voltage ranges up to 690 V AC.

Key features

  • - Action: Non-Reversing
  • - Application: Motor Control, Resistive Load
  • - Poles/Main Contacts: 3 poles; 3 NO main contacts
  • - Auxiliary Contacts: 1NO/1NC (2 total); Includes Auxiliary Contacts: Yes
  • - Coil Voltage: 120 V AC
  • - Electrical Connection: Screw Clamp Terminals
  • - Mounting: DIN Rail, Plate; Mounts On: Plate, Rail
  • - Enclosure/IP: Has an open design with IP20 protection rating
  • - Maximum/Insulation Voltage: Rated for operation up to 690 V AC within specified parameters; 600/690 V insulation
  • - Frequency: 50/60 Hz
  • - Series/Frame: TeSys Deca (TeSys)
  • - Weight/Dimensions: 0.86 kg; Depth 4.72 in; Height 4.8 in; Width 2.17 in
  • - Durability: Mechanical durability approximately 6 million cycles; Electrical endurance within typical operational expectations
  • - Inrush/Standards: Conforms to listed standards including UL, EN, CCC, CSA, GOST, IEC as applicable
  • - Included/Extras: Everlink Power Connections; Protective Cover: Yes
  • - Other: Embedded Surge Suppressor: No; Phase: Three; Maximum Operating Temperature: 140°F
    • 🏢
