• Schneider Electric LC1D65AM7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1D65AM7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1D65AM7 - IEC Magnetic Contactor, 1 NC/1 NO, 220 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1D65AM7
$421.82 USD
$421.82 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

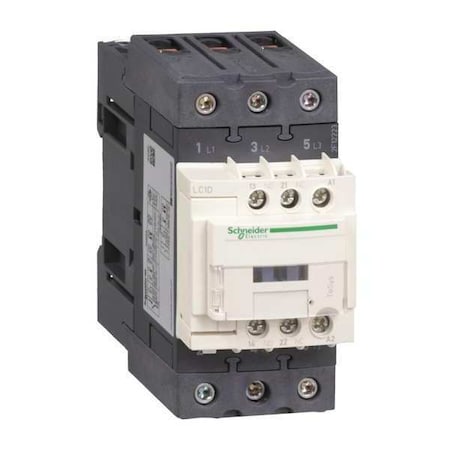

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 3-pole contactor with a coil voltage of 220V AC. It's designed for motor control and resistive load applications, featuring mechanically linked auxiliary contacts and an average impedance of 1.5 mOhm. The contactor is designed to meet the requirements of IACS E10 and IEC 60947-1 Annex Q category D standards for damp heat exposure. Its connections include screw clamp terminals for the control circuit and EverLink BTR screw connectors for the power circuit.

Key features include:

  • - Auxiliary Contact Form: 1NC/1NO
  • - Associated Fuse Rating: Suitable for various circuits conforming to IEC standards.
  • - Coil Voltage: Operates at 220V AC.
  • - Connections - Terminals: Features both screw clamp terminals and EverLink BTR screw connectors.
  • - Electrical Durability: Tested for approximately 1.45 million cycles under specific test conditions.
  • - Full Load Amps - Inductive & Resistive: Rated for a maximum of 65A inductive load and up to 80A resistive load.
  • - Horsepower Ratings: Dependent on voltage level; highest observed horsepower rating was with three-phase motors operating at voltages between 575/600 V AC (50 hp).
  • - Insulation Resistance Range: Greater than or equal to10 MOhms (Signalling Circuit)
  • -Includes Protective Cover
  • -Maximum Operating Rate tested at3600 cyc/h
  • -Rated Operational Current/Voltage : Tested with currents Up to80 A (at Less than140°F)for power circuit; Power circuits rated for operation within690 V AC25to400 Hz range, or within300 V DC range.
  • -Tightening Torque : Control Circuit(1.7 Nm),Power Circuit(2.5to8 Nm).
    • 🏢
