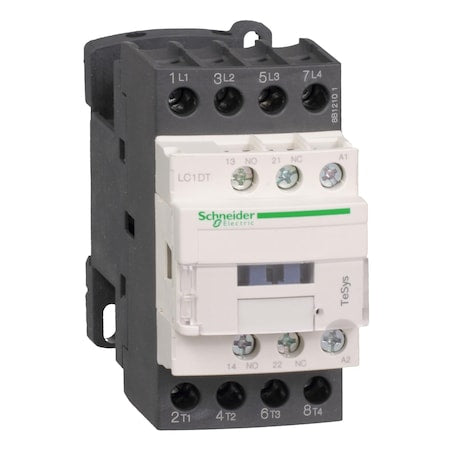

Schneider Electric LC1DT20B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1DT20B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1DT20B7
$149.32 USD
$149.32 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a four-pole, non-reversing power-switching device rated for operation within specified voltage ranges with a 24 V AC coil. It features 1 NC and 1 NO auxiliary contacts (mechanically linked), and uses screw clamp terminals. Part of the LC1D TeSys Deca family, it complies with relevant standards for switching IEC-standard power circuits; includes a protective cover; mounting options include plate or rail installations.

Key features

  • - Poles/contacts: 4 main contacts (4 NO); auxiliary contacts: 2 total (1 NC + 1 NO), mechanically linked
  • - Coil and control: Coil voltage 24 V AC (50/60 Hz); control circuit AC (50/60 Hz)
  • - Rated current and capacity: 20 A rated operational current (power circuit) at < 60°C; 20 A full-load (resistive/inductive)
  • - Making/interrupt ratings: 140 A (AC signalling) / 250 A (DC signalling); 250 A @ 440 V (Power Circuit)
  • - Voltage and insulation: Rated voltage up to 690 V AC (power circuit) and up to 300 V DC; insulation voltages: power circuit 600 V (CSA/UL), signalling circuit 690 V (IEC 60947-1)
  • - Physical and mounting: Dimensions 45 mm W × 92 mm D × 85 mm H; net weight 0.365 kg; mounting on plate or rail; screw clamp terminals
  • - Protection and environment: IP20 front face; protective cover included; permissible ambient -40 to 60°C (60–70°C with derating)
  • - Series and standards: Range TeSys Deca; LC1D series; standards include EN 60947-4-1, EN 60947-5-1, UL 508, IEC 60947-4-1, IEC 60947-5-1
  • - Additional specs: impulse withstand voltage 6 kV; maximum switching rate up to 3600 cyc/h at 60°C; non-reversing operation
    • 🏢
