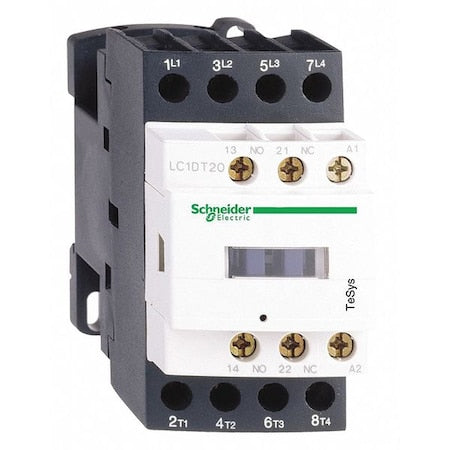

Schneider Electric LC1DT20BD - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1DT20BD - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1DT20BD
$152.59 USD
$152.59 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

- An IEC Magnetic Contactor rated for switching resistive load power circuits.

  • - It is a 4-pole, non-reversing device with a 24 V DC coil and auxiliary contacts configured as 1NC/1NO (two auxiliary contacts total).
  • - The unit features screw clamp terminals, suitable for mounting on plates or rails; it includes a protective cover.
  • - It conforms to the specifications of the LC1D series.
  • - Coil voltage: 24 V DC
  • - Poles: 4
  • - Auxiliary contacts: 1NC/1NO (two contacts total)
  • - Reversing capability: Non-Reversing
  • - Electrical connection: Screw Clamp Terminals
  • - Mounting: Plate, Rail
  • - IP rating: IP20
  • - Dimensions: Depth 99 mm; Height 85 mm; Width 45 mm
  • - Net weight: 0.365 kg
  • - Rated voltage: Up to 690 V AC / up to 300 V DC within specified conditions
  • - Rated current (full load): Up to 20 A at specified conditions for resistive and inductive loads
  • - Rated making capacity: As per applicable standards under specified test conditions
  • - Impulse withstand voltage: Meets relevant testing standards under defined conditions
  • - Fire rating: Fire rating classification based on standard testing methods; does not imply safety guarantee in all environments
  • - Rated insulation voltage: 600/690 V
  • - Series: LC1D
  • - Series designation indicates product line but does not imply performance guarantees beyond specifications provided
  • - Includes protective cover intended for use according to installation instructions; does not guarantee protection against all hazards
  • - Environmental attributes: Mercury Free, PVC Free, Pollution Degree 3
  • - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, GOST, LROS, UL, CSA, RINA, BV, CCC, DNV, GL
  • - Operating speed: 3600 cycles per hour
  • - Operating time: Opening 16–24 ms; Closing 53.55–72.45 ms
  • - Non-overlap time: 1.5 ms
  • - Overvoltage category: CAT III
  • - Short-time withstand current: multiple values (up to 210 A for 1 s in Power Circuit, among others)
  • - Switching current: 5 mA (Signalling Circuit)
  • - Switching voltage: 17 V (Signalling Circuit)
  • - Thermal amperage: 10 A (Signalling Circuit), 20 A (60°C Power Circuit)
  • - Tightening torque: 1.7 Nm
  • - Vibration resistance: 4 G (Closed), 2 G (Open)
  • - Working height: Up to 9842.52 ft
    • 🏢
