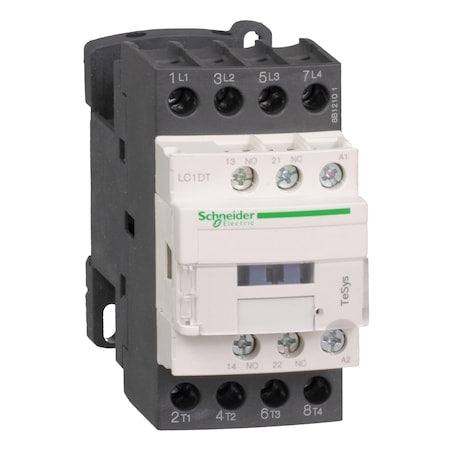

Schneider Electric LC1DT32B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1DT32B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1DT32B7
$220.17 USD
$220.17 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a non-reversing, 4-pole switching device (4P) with a 24 V AC coil and 1NC/1NO auxiliary contact (mechanically linked 1 NO + 1 NC). It uses screw clamp terminals for control and power circuits and is part of the TeSys Deca LC1D family, rated for switching power circuits within specified parameters.

- Coil and control: 24 V AC coil; control circuit 50/60 Hz

  • - Main and auxiliary contacts: 4 NO main contacts; 1NC/1NO auxiliary (mechanically linked 1 NO + 1 NC)
  • - Electrical ratings: Ie 32 A (AC-1) at ≤440 V; Rated making 140 A (AC signalling), 250 A (DC signalling), 300 A @ 440 V (Power Circuit); Rated voltage up to 690 V AC / 300 V DC
  • - Terminals: Screw Clamp
  • - Protection and enclosure: IP20 front face; includes protective cover
  • - Environment and materials: Mercury Free, PVC Free, Toxic Heavy Metal Free
  • - Mechanical and electrical durability: 15 Mcycles mechanical durability; shock 8 G (open) / 15 G (closed); vibration 4 G (closed) / 2 G (open); operating temperature -40 to 60°C (60-70°C derating)
  • - Thermal and power characteristics: Heat dissipation 2–3 W; hold VA 7.5 VA (60 Hz, 20°C); inrush VA 70 VA
  • - Impulse and insulation: Impulse withstand 6 kV; rated insulation voltages up to 600/690 V
  • - Physical dimensions and weight: Height 91 mm; Width 45 mm; Depth 99 mm; Net weight 0.425 kg
  • - Mounting and installation: Mounting support Plate, Rail
  • - Standards and certifications: EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 508; CSA C22.2 No 14; plus listed certifications (as applicable)
  • - Reversing and series: Non-Reversing; Series LC1D; Range TeSys Deca
  • - Associated fuse ratings: 10 A gG ( signalling circuit ); 50 A gG at ≤690 V (Type 1 Power Circuit); 35 A gG at ≤690 V (Type 2 Power Circuit)
    • 🏢
