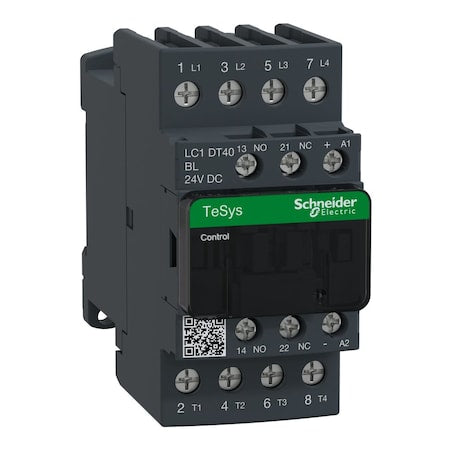

• Schneider Electric LC1DT40BL - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 4 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1DT40BL - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1DT40BL - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1DT40BL
$332.44 USD
$332.44 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

Schneider Electric’s IEC Magnetic Contactor is a four-pole, non-reversing, electrically operated switching device designed to control power circuits in line with IEC standards. It features a 24V DC coil and two auxiliary contacts (1NC/1NO) with screw clamp terminals, and is part of the TeSys Deca series. The unit is a single-phase, 50 Hz device rated for operation within the specified voltage range of up to 690V AC with IP20 protection, and it can be mounted on DIN rail or plate.

- Poles and auxiliary contacts: 4 poles; 2 auxiliary contacts (1NC/1NO)

  • - Coil voltage: 24V DC
  • - Reversing capability: Non-Reversing
  • - Terminal type: Screw Clamp
  • - Maximum voltage rating: 690V AC
  • - Phase and frequency: Single, 50 Hz
  • - Series: TeSys Deca
  • - Mounting: DIN Rail, Plate
  • - IP rating: IP20
  • - Mechanical durability: 30,000,000 cycles
  • - Electrical durability (AC-1): 1,400,000 cycles
  • - Full-load currents: Inductive 150 A; Full-load current - Inductive 40 A; Full-load current - Resistive 200 A
  • - Resistance properties: Fire Resistant, Insulation Resistant
  • - Embedded surge suppressor: No
  • - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
  • - Dimensions (D x H x W): 4.21 in × 3.58 in × 1.77 in
  • - Includes auxiliary contacts: Yes
    • 🏢
