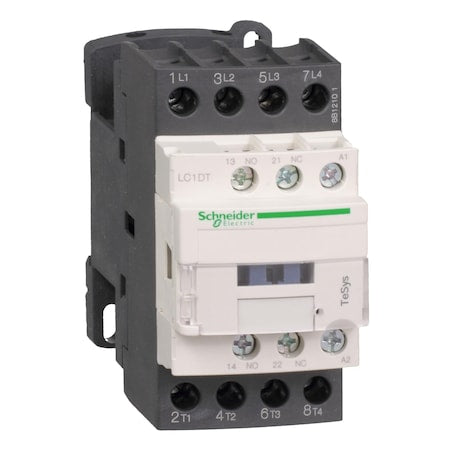

• Schneider Electric LC1DT40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 4 P, Non-Reversing, Screw Clamp
1 1

Schneider Electric LC1DT40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 4 P, Non-Reversing, Screw Clamp

Schneider Electric LC1DT40U7 - IEC Magnetic Contactor, 1 NC/1 NO, 240 V AC, 4 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1DT40U7
$265.95 USD
$265.95 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a four-pole, non-reversing switch rated for controlling resistive load circuits within specified parameters in IEC-driven control systems. It contains a 240 V AC coil and an auxiliary contact configuration of 1NC/1NO; equipped with screw clamp terminals and a protective cover.

- Coil voltage: 240 V AC

  • - Control circuit: AC 50/60 Hz; Control circuit voltage: 240 V AC 50/60 Hz
  • - Auxiliary contact form: 1NC/1NO
  • - Auxiliary contact type: Mechanically linked 1 NO + 1 NC; Mirror contact 1 NC
  • - Poles: 4P
  • - Pole contact composition: 4 NO
  • - Connections: Screw Clamp Terminals
  • - Mounting: Plate, Rail
  • - Protective cover: Included
  • - IP rating: IP20
  • - Series: LC1D
  • - Rated making capacity as specified: 140 A for AC signalling, 250 A for DC signalling, and up to 450 A at 440 V in power circuits
  • - Rated operational current: rated operational current of up to 40 A in accordance with standard specifications at voltages up to ≤440 V
  • - Power circuit voltage rating: Power circuit 600 V; Signalling circuit voltage rating: Signalling circuit 690 V
  • - Impulse withstand voltage: 6 kV
  • - Net weight: 0.425 kg
  • - Dimensions: Height 91 mm; Width 45 mm; Depth 99 mm
  • - Certifications: GL; CCC; LROS; BV; UL; RINA; CSA; GOST; DNV
    • 🏢
