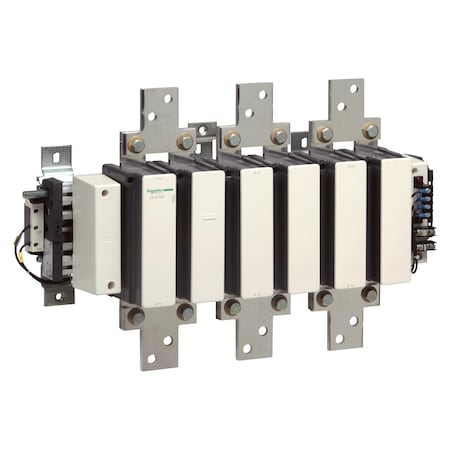

Schneider Electric LC1F780F7 - IEC Magnetic Contactor, 3 NO, 110 V AC, 3 P, Screw Clamp

Schneider Electric LC1F780F7 - IEC Magnetic Contactor, 3 NO, 110 V AC, 3 P, Screw Clamp

Brand: Schneider Electric SKU: LC1F780F7
$9,129.83 USD
$9,129.83 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, coil-operated switching device with 3 normally open auxiliary contacts (3NO). It uses a 110 V AC coil and is configured for control of motor and resistive loads. This unit is part of the TeSys F range (LC1F series) and is compatible with screw-clamp control terminals and power circuit bars with bolted connections.

- Coil voltage: 110 V AC

  • - Poles and auxiliary contacts: 3P, 3NO
  • - Control/power terminals: Control circuit screw clamp terminals; Power circuit bar, bolted connection
  • - Rated operational voltage: rated for operation within the specified voltage ranges
  • - Rated insulation voltage: 1000/1500 V
  • - Short-time withstand current (Icw): short-time withstand current ratings are provided according to testing standards
  • - Full-load current: rated for the specified full-load currents under standard conditions
  • - Ambient & storage temperatures: Operation 23 to 131 °F (−5 to 55 °C); Storage −76 to 176 °F (−60 to 80 °C); Permissible ambient −40 to 158 °F (−40 to 70 °C)
  • - IP rating: IP20
  • - Mechanical durability: 5 Mcycles
  • - Weight: 39.5 kg
  • - Dimensions: Width 27.64 in (702 mm); Height 17.09 in (434 mm); Depth 10.04 in (255 mm)
  • - Motor power ratings: 450 kW at 1000 V AC (AC-3); 400 kW at 380–400 V; 425 kW at 415–440 V; 450 kW at 500 V; 475 kW at 660–690 V; 220 kW at 220–230 V; 110 kW at 400 V (AC-4)
  • - Series/range: LC1F (TeSys); Range: TeSys F
  • - Utilisation categories: conforms to utilisation categories as defined by relevant standards
  • - Impulse withstand voltage: 8 kV
  • - Inrush/hold-in power: Inrush 2100 VA; Hold-in 50 VA
  • - Certifications: UL; CSA; RINA; ABS; LROS; DNV; BV; UKCA; CB; RMRoS
  • - Protective treatment and materials: TH protective treatment; Mercury free
    • 🏢
