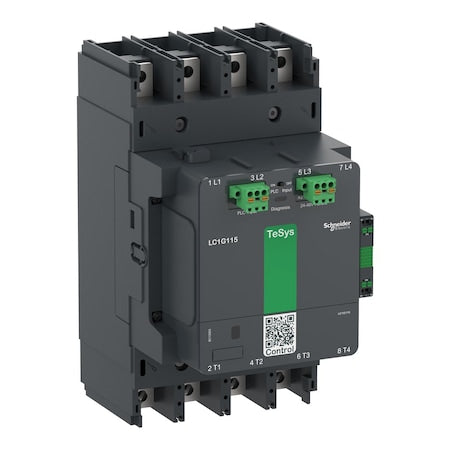

Schneider Electric LC1G1154LSEA - IEC Magnetic Contactor, 1 NC/1 NO, 200 V-500 V AC/DC, 4 P, Spring Type

Schneider Electric LC1G1154LSEA - IEC Magnetic Contactor, 1 NC/1 NO, 200 V-500 V AC/DC, 4 P, Spring Type

Brand: Schneider Electric SKU: LC1G1154LSEA
$1,402.82 USD
$1,402.82 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 4-pole, plate-mounted switching device (TeSys Giga series) that uses an electromagnetic coil to open or close power circuits. It includes two auxiliary contacts configured as 1NC/1NO and accepts a coil voltage range of 200–500 V AC/DC. Complies with IEC standards, it is rated for operation up to 1000 V AC within specified conditions and features an IP20 enclosure. The contactor operates within the specified frequency ranges (50/60 Hz), single-phase systems, and has a mechanical durability of approximately 8,000,000 cycles under specified testing conditions. It uses Spring Type terminals and is mounted on a plate, intended for use in controlling motors, lighting, and similar loads as per specifications.

- Item: IEC Magnetic Contactor (TeSys Giga), 4-pole, plate mounting

  • - Auxiliary contacts: 2 total (1NC/1NO)
  • - Coil voltage: 200–500 V AC/DC
  • - Maximum voltage rating: 1000 V AC
  • - Frequency: 50/60 Hz
  • - IP rating: IP20
  • - Phase: Single
  • - Series: TeSys Giga
  • - Mounting: Plate; Terminal connection: Spring Type
  • - Mechanical durability: Has a mechanical durability of approximately 8,000,000 cycles under specified testing conditions
  • - Operating temperature: -13°F to 140°F
  • - Full load amps (Inductive/Resistive): 210 A / 250 A
  • - Full load current (Inductive/Resistive): 115 A / 250 A
  • - Dimensions: Depth 7.6 in; Height 10.04 in; Width 5.63 in
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
    • 🏢
