• Schneider Electric LC1G115EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type
1 1

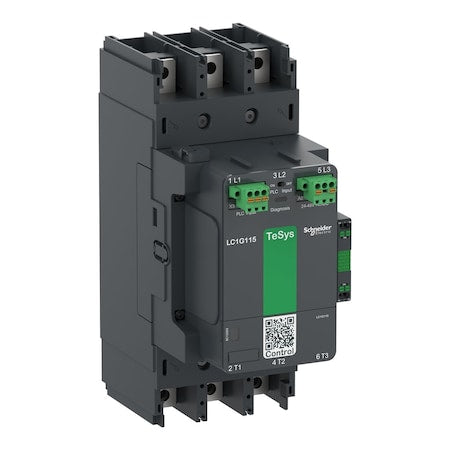

Schneider Electric LC1G115EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type

Schneider Electric LC1G115EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type

Brand: Schneider Electric SKU: LC1G115EHEA
$974.45 USD
$974.45 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 3-pole, plate-mounted switching device rated for use in control circuit applications within the specified standards. It is rated for coil voltages between 48V and 130V AC/DC and includes two auxiliary contacts configured as 1NC/1NO. The unit uses a spring-type terminal connection and is part of the TeSys Giga series, compatible with standard control panel configurations according to manufacturer specifications.

Key features

  • - Coil voltage: 48V-130V AC/DC
  • - Contactor style: IEC
  • - Phase: Single
  • - Number of poles: 3
  • - Auxiliary contacts: Yes (2 total; form 1NC/1NO)
  • - Terminal connection type: Spring Type
  • - Mounting style: Plate
  • - Embedded surge suppressor: No
  • - Frequency: 50/60 Hz
  • - Maximum voltage rating: 1000V AC
  • - IP rating: IP20
  • - Full load amps (inductive): 210 A
  • - Full load amps (resistive): 250 A
  • - Full load current (inductive): 115 A
  • - Full load current (resistive): 250 A
  • - Maximum operating temperature: 140 Degrees F
  • - Minimum operating temperature: -13 Degrees F
  • - Dimensions (approx.): depth 7.6 in, height 10.04 in, width 4.25 in
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
    • 🏢
