• Schneider Electric LC1G2254EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type
1 1

Schneider Electric LC1G2254EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Schneider Electric LC1G2254EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Brand: Schneider Electric SKU: LC1G2254EHEN
$2,008.86 USD
$2,008.86 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

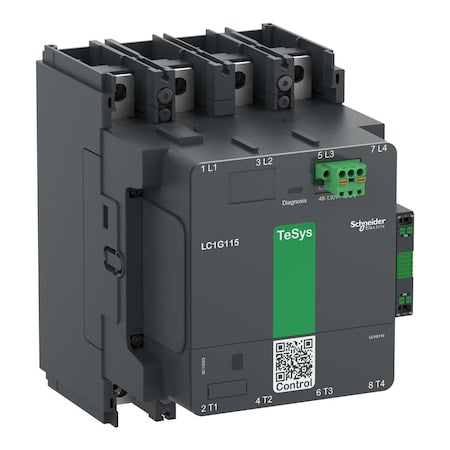

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, coil-operated switch rated for operation within specified control system parameters. It employs an electromagnetic coil for contact switching within its rated specifications and includes 1 normally closed and 1 normally open auxiliary contact as specified. The coil is rated 48–130 V (AC/DC) and wiring uses a spring-type terminal connection. This device belongs to the TeSys Giga series and is compatible with mounting on a plate according to installation instructions.

Key features

  • - Auxiliary contacts: 1NC/1NO (2 auxiliary contacts)
  • - Coil voltage: rated for operation within the specified voltage range of 48V–130V AC/DC
  • - Contactor style: IEC
  • - Embedded surge suppressor: No
  • - Frequency: 50/60 Hz
  • - Poles: 4
  • - Phase: Single
  • - Terminal connection type: Spring Type
  • - Mounting style: compatible with mounting on a plate according to installation instructions
  • - IP rating: has an IP20 ingress protection rating as per standards
  • - Maximum voltage rating: 1000V AC
  • - Maximum operating temperature: 140 Degrees F
  • - Minimum operating temperature: -13 Degrees F
  • - Mechanical durability: 8,000,000 cycles
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Dimensions: Depth 7.6 in, Height 7.6 in, Width 5.63 in
  • - Full load current (inductive/resistive): 225 A / 330 A
  • - Full load amps (inductive/resistive): 290 A / 330 A
    • 🏢
