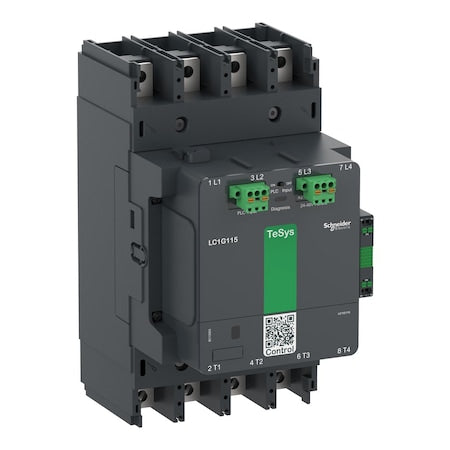

• Schneider Electric LC1G2254LSEA - IEC Magnetic Contactor, 1 NC/1 NO, 200 V-500 V AC/DC, 4 P, Spring Type
1 1

Schneider Electric LC1G2254LSEA - IEC Magnetic Contactor, 1 NC/1 NO, 200 V-500 V AC/DC, 4 P, Spring Type

Schneider Electric LC1G2254LSEA - IEC Magnetic Contactor, 1 NC/1 NO, 200 V-500 V AC/DC, 4 P, Spring Type

Brand: Schneider Electric SKU: LC1G2254LSEA
$2,296.62 USD
$2,296.62 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 4-pole, electrically operated switch rated for operation within the specified IEC standards. It features 1NC/1NO auxiliary contacts, a coil voltage range of 200V-500V AC/DC, and a spring-type terminal connection. The unit is part of the TeSys Giga series, mounts on a plate, and is rated for use at voltages up to 1000V AC and frequencies of 50/60 Hz.

- Auxiliary Contacts: 2 total (1NC/1NO)

  • - Poles: 4
  • - Coil Voltage: 200-500V AC/DC
  • - Contactor Style: IEC
  • - Terminal Connection Type: Spring Type
  • - Mounting Style: Plate
  • - IP Rating: IP20
  • - Maximum Voltage Rating: 1000V AC
  • - Frequency: 50/60 Hz
  • - Maximum Operating Temperature: 140 °F
  • - Minimum Operating Temperature: -13 °F
  • - Mechanical Operating Durability: specified mechanical durability cycles (no guarantee of performance beyond this)
  • - Full Load Amps (Inductive): rated for applications requiring current up to this level under specified conditions
  • - Full Load Amps (Resistive): rated for applications requiring current up to this level under specified conditions
  • - Full Load Current (Inductive): 225 A
  • - Full Load Current (Resistive): 330 A
  • - Includes Auxiliary Contacts: Yes
  • - Item: IEC Magnetic Contactor
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Overall Depth: 7.6 in
  • - Overall Height: 10.04 in
  • - Overall Width: 5.63 in
  • - Phase: Single
    • 🏢
