• Schneider Electric LC1G2654EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type
1 1

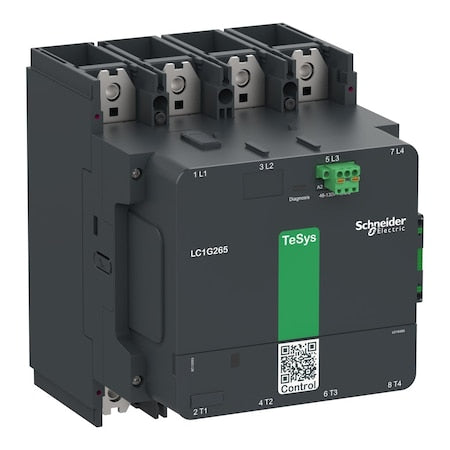

Schneider Electric LC1G2654EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Schneider Electric LC1G2654EHEN - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Brand: Schneider Electric SKU: LC1G2654EHEN
$2,382.73 USD
$2,382.73 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a four-pole, electrically operated switch designed to control power circuits in industrial control systems. It uses a coil rated for 48V-130V (AC/DC) to energize the contact set, with auxiliary contacts configured as 1NC/1NO. The device features a plate mounting style with spring-type terminals, belongs to the TeSys Giga series, and is rated for operation within the specified voltage range of 1000V AC in a single-phase configuration. It carries IP20 protection and has a mechanical durability rating based on standard testing conditions, with an operating temperature range from -13°F to 140°F. Dimensions are approximately 7.28 inches wide, 8.86 inches high, and 4.8 inches deep.

- Item: IEC Magnetic Contactor

  • - Poles: 4
  • - Phase: Single
  • - Coil voltage: 48V-130V AC/DC
  • - Auxiliary contact form: 1NC/1NO
  • - Includes auxiliary contacts: Yes (2 total)
  • - Mounting style: Plate
  • - Terminal connection: Spring Type
  • - Maximum voltage rating: 1000V AC
  • - IP rating: IP20
  • - Embedded surge suppressor: No
  • - Frequency: 50/60 Hz
  • - Full load amps (inductive): 340 A
  • - Full load amps (resistive): 385 A
  • - Full load current (inductive): 265 A
  • - Full load current (resistive): 385 A
  • - Maximum operating temperature: 140°F
  • - Minimum operating temperature: -13°F
  • - Mechanical durability rating: Based on standard testing conditions
  • - Dimensions (W×H×D): dimensions are approximately 7.28 inches wide, 8.86 inches high, and 4.8 inches deep
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Surface mounting: Plate type (Mounting Style)
    • 🏢
