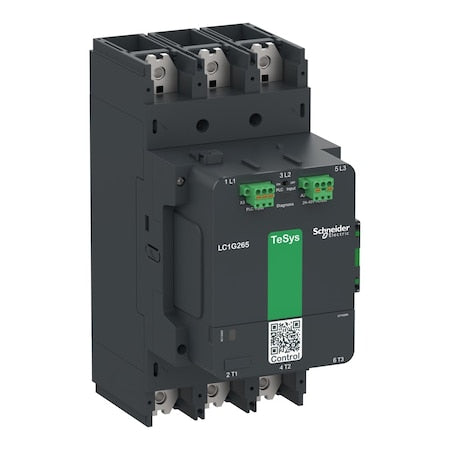

• Schneider Electric LC1G265EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type
1 1

Schneider Electric LC1G265EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type

Schneider Electric LC1G265EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 3 P, Spring Type

Brand: Schneider Electric SKU: LC1G265EHEA
$2,040.47 USD
$2,040.47 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 3-pole, spring-type electrical switch rated for use within the specified standards. It uses a 48V-130V AC/DC coil; auxiliary contacts are configured as 1NC/1NO (2 auxiliary contacts total). The device is rated for single-phase applications, has an IP20 rating, and is compatible with plate mounting configurations. It has a maximum voltage rating of up to 1000V AC and operates at frequencies of 50/60 Hz.

- Item: IEC Magnetic Contactor

  • - Series: TeSys Giga
  • - Contactor Style: IEC
  • - Coil Voltage: 48V-130V AC/DC
  • - Phase: Single
  • - Number of Poles: 3
  • - Number of Auxiliary Contacts: 2
  • - Auxiliary Contact Form: 1NC/1NO
  • - Includes Auxiliary Contacts: Yes
  • - Terminal Connection Type: Spring Type
  • - Mounting Style: Plate
  • - IP Rating: IP20
  • - Maximum Voltage Rating: 1000V AC
  • - Frequency: 50/60 Hz
  • - Rated for operation within the specified temperature ranges (see specifications). // replaces Maximum Operating Temperature: 140 Degrees F
  • - Rated for operation within the specified temperature ranges (see specifications). // replaces Minimum Operating Temperature: -13 Degrees F
  • - Mechanical Operating Durability: 8000000
  • - Overall Depth: 4.8 in
  • - Overall Height: 11.42 in
  • - Overall Width: 5.51 in
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Embedded Surge Suppressor: No
  • - Full Load Current (Inductive): 340 A
  • - Full Load Current (Resistive): 385 A
  • - Full Load Amps (Inductive): 340 A
  • - Full Load Amps (Resistive): 385 A
  • - Rated for operation within the specified temperature ranges (see specifications). // replaces Maximum Operating Temperature: 140 Degrees F
  • - Rated for operation within the specified temperature ranges (see specifications). // replaces Minimum Operating Temperature: -13 Degrees F
  • - Item: IEC Magnetic Contactor
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Includes Auxiliary Contacts: Yes
  • - Embedded Surge Suppressor: No
    • 🏢
