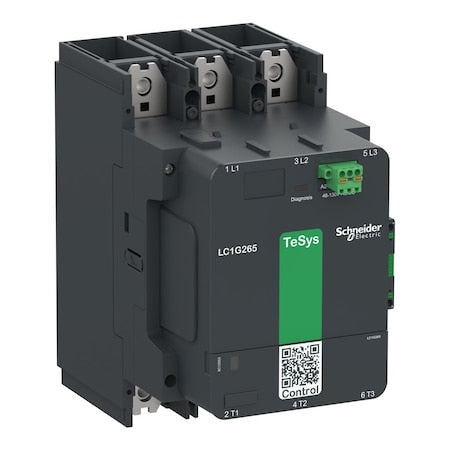

The Schneider Electric IEC Magnetic Contactor is a 3-pole, spring-type device used to switch power circuits in control applications. It has a coil voltage range of 48V-130V (AC/DC) and includes two auxiliary contacts configured as 1NC/1NO. This unit is part of the TeSys Giga series and is rated for use in single-phase systems with a plate mounting configuration.

- Item: IEC Magnetic Contactor

  • - Series: TeSys Giga
  • - Poles: 3
  • - Phase: Single
  • - Coil Voltage: 48V-130V AC/DC
  • - Auxiliary Contacts: 2 (1NC/1NO)
  • - Auxiliary Contact Form: 1NC/1NO
  • - Terminal Connection Type: Spring Type
  • - Mounting Style: Plate
  • - Frequency: 50/60 Hz
  • - IP Rating: IP20
  • - Maximum Voltage Rating: 1000V AC
  • - Maximum Operating Temperature: 140 Degrees F
  • - Minimum Operating Temperature: -13 Degrees F
  • - Mechanical Durability: 8,000,000 cycles
  • - Overall Dimensions (L x W x H): 4.8 in depth, 5.51 in width, 8.86 in height
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
  • - Includes Auxiliary Contacts: Yes
  • - Maximum Voltage Rating (explicit): 1000V AC
  • - Full Load Current (Inductive): 500 A
  • - Full Load Amps - Inductive: 630 A
  • - Full Load Current - Resistive: 700 A
  • - Full Load Amps - Resistive: 700 A
  • - Item Type: IEC Magnetic Contactor
    • 🏢
