• Schneider Electric LC1G630KUEN - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Spring Type
1 1

Schneider Electric LC1G630KUEN - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Spring Type

Schneider Electric LC1G630KUEN - IEC Magnetic Contactor, 1 NC/1 NO, 100 V-250 V AC/DC, 3 P, Spring Type

Brand: Schneider Electric SKU: LC1G630KUEN
$4,208.48 USD
$4,208.48 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

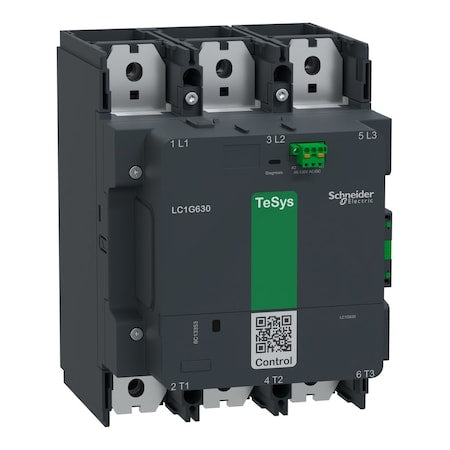

The Schneider Electric IEC Magnetic Contactor is a 3-pole, IEC-style device used to switch power circuits in control panels. It features a 100–250 V AC/DC coil, spring-type terminals, and two auxiliary contacts configured as 1NC/1NO. It is part of the TeSys Giga series and mounts to a plate. The unit is rated for operation at voltages up to 1000 V AC, rated for operation within the specified frequency range of 50/60 Hz, and has an IP20 enclosure. It has a mechanical cycle life expectancy based on testing standards and an operating temperature range from -13°F to 140°F.

- Auxiliary contacts: 2 (1NC/1NO)

  • - Coil voltage: 100–250 V AC/DC
  • - Poles: 3
  • - Mounting style: Plate
  • - Terminal connection type: Spring Type
  • - Maximum voltage rating: 1000 V AC
  • - Frequency: 50/60 Hz
  • - IP rating: IP20
  • - Embedded surge suppressor: No
  • - Full Load Amps - Inductive: 850 A
  • - Full Load Amps - Resistive: 1,050 A
  • - Full Load Current - Inductive: 630 A
  • - Full Load Current - Resistive: 1,050 A
  • - Maximum operating temperature: designed for use within an ambient temperature range up to 140°F (60°C)
  • - Minimum operating temperature: designed for use within an ambient temperature down to -13°F (-25°C)
  • - Mechanical operating durability: 5,000,000 cycles
  • - Overall depth × height × width: 10.47 in × 11.18 in × 8.31 in
  • - Phase: Single
  • - Series: TeSys Giga
  • - Standards: CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1
    • 🏢
