• Schneider Electric LC1G8004EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type
1 1

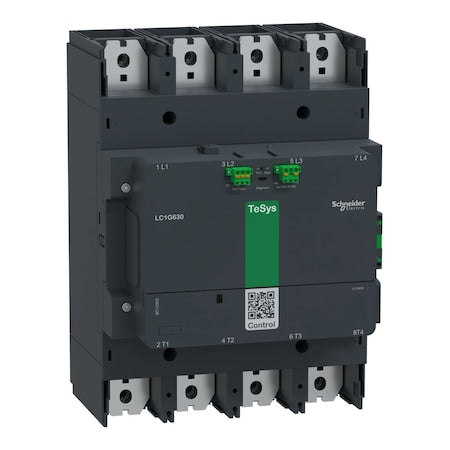

Schneider Electric LC1G8004EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Schneider Electric LC1G8004EHEA - IEC Magnetic Contactor, 1 NC/1 NO, 48 V-130 V AC/DC, 4 P, Spring Type

Brand: Schneider Electric SKU: LC1G8004EHEA
$8,480.19 USD
$8,480.19 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a four-pole, coil-driven switching device that conforms to IEC standards for control devices. It features a 1NC/1NO auxiliary contact arrangement and is part of the TeSys Giga series (product classification only). The coil operates from 48–130 V (AC or DC) at 50/60 Hz, with spring-type terminals and plate mounting. It is rated for operation within the specified voltage ranges. It has an IP20 rating. It has an operational temperature range of -13°F to 140°F (as specified) and is specified for 5,000,000 mechanical operating cycles. Standards include CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, JIS C8201-4-1, JIS C8201-5-1, UL 60947-4-1. It includes auxiliary contacts as specified.

- Item: IEC Magnetic Contactor (TeSys Giga) (product classification only)

  • - Poles/Phase: 4, Single
  • - Coil Voltage: 48–130 V AC/DC
  • - Auxiliary Contacts: 2 total (1NC/1NO)
  • - Terminal Connection / Mounting: Spring Type, Plate
  • - IP Rating: IP20
  • - Maximum Voltage Rating: within the specified voltage ranges
  • - Frequency: 50/60 Hz
  • - Embedded Surge Suppressor: No
  • - Full Load Amps: Inductive 900 A / Resistive 1,050 A
  • - Full Load Current: Inductive 800 A / Resistive 1,050 A
  • - Mechanical Durability: 5,000,000 cycles
  • - Operating Temperature Range: -13°F to 140°F (as specified)
  • - Dimensions: Depth 10.47 in, Height 15.3 in, Width 11.06 in
  • - Series: TeSys Giga (product classification only)
  • - Standards: CSA, EN/IEC, JIS, UL
  • - Auxiliary Contacts Included: Yes
    • 🏢
