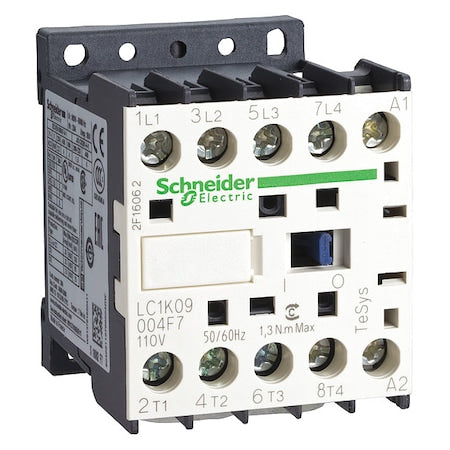

Schneider Electric LC1K09004F7 - IEC Magnetic Contactor, 4 NO, 110 V AC, 4 P

The Schneider Electric IEC Magnetic Contactor, 4NO, 110 V AC, 4P, is an electrically operated switching device rated for operation within specified voltage and current ranges. It uses an electromagnetic coil to open or close four-pole contacts, suitable for switching applications within specified electrical parameters. This compact, modular contactor is part of the LC1K series and is equipped with auxiliary contacts as specified, with a 110 V AC coil for control.

Key features:

• - Coil voltage: 110 V AC (AC 50/60 Hz control circuit)
• - Poles: 4P
• - Auxiliary contacts: 4 NO
• - Power circuit rated making capacity: 110 A -> Rated for use within the specified current ratings under normal operating conditions: 110 A
• - Rated operational current (power circuit): 20 A at ≤690 V AC, AC-1 -> Rated for operation within the specified voltage and current ranges according to applicable standards
• - Rated insulation voltage: Power circuit 600/690 V
• - IP rating: IP2X
• - Mounting: Rail; Plate
• - Dimensions: Depth 57 mm; Width 45 mm; Height 58 mm
• - Net weight: 0.18 kg
• - Series: LC1K
• - Mechanical durability: 10 Mcycles
• - Maximum operating rate: 3600 cyc/h
• - Impulse withstand voltage: 8 kV -> Testd to withstand impulse voltages up to this level when used within designated parameters
• - Inrush VA: 30 VA
• - Hold-in power: 4.5 VA
• - Ambient storage temperature: -50°C to 80°C
• - Certifications: CB Scheme; CCC; UL; CSA; EAC; CE; UKCA
