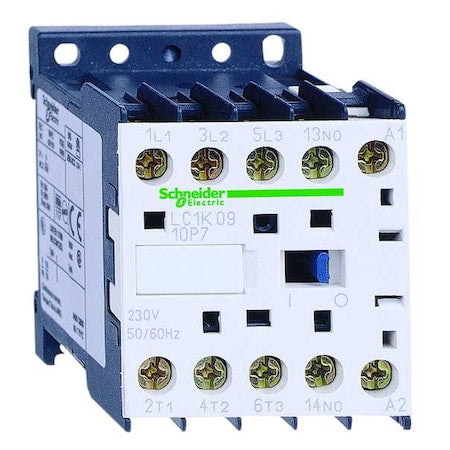

Schneider Electric LC1K0910U7 - IEC Miniature Magnetic Contactor, 1 NO, 240 V AC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LC1K0910U7 - IEC Miniature Magnetic Contactor, 1 NO, 240 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC1K0910U7
$103.17 USD
$103.17 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SCHNEIDER ELECTRIC IEC Miniature Magnetic Contactor is a 3-pole, non-reversing device with a 240 V AC coil (coil voltage). It is part of the TeSys K family and is rated for operation with motor control and resistive loads within specified parameters. It uses screw clamp terminals and has no enclosure or embedded surge suppressor. The contactor features 3 normally open main contacts and 1 auxiliary contact, rated according to specifications.

Key features

  • - Coil voltage: 240 V AC; Hold VA: 4.5 VA; Inrush VA: 30 VA; Watts loss: 1.3 W; Operating times: 10 to 20 ms (energise NO close, de-energise NO open)
  • - Poles/contacts: 3 poles; 3 normally open main contacts; Auxiliary contacts: 1 NO (1 auxiliary contact)
  • - Reversing: Non-Reversing; Frame/series: TeSys K / TeSys; Contactor style: IEC
  • - Electrical ratings: Max voltage 690 V AC; Frequency 50/60 Hz; Overvoltage CAT III
  • - Current ratings: Full Load Amps – Inductive 9 A; Full Load Amps – Resistive 20 A; Rated Making Capacity 110 A; Rated Breaking Capacity up to 110 A at multiple voltages
  • - Standards: CSA, UKCA, UL Listed; Enclosure: No Enclosure
  • - Terminal: Screw Clamp; Embedded surge suppressor: No; Insulation resistance: Greater Than 10 MΩ (Signalling Circuit)
  • - Dimensional footprint: Depth 1.97 in; Height 1.73 in; Width 1.73 in
  • - Additional electrical characteristics: Inrush 30 VA; Hold 4.5 VA; Impedance 3 mΩ; Shock resistance up to 10–15 G depending on axis/state; Vibration resistance 4 G (Closed), 2 G (Open)
  • - Environment and safety marks: Mercury Free, Toxic Heavy Metal Free; Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
    • 🏢
