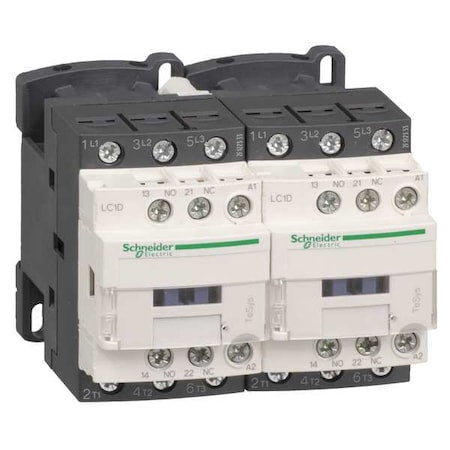

Schneider Electric LC2D09B7 - IEC Magnetic Contactor, 1 NC/1 NO, 24 V AC, 3 P, Reversing, Screw Clamp

The Schneider Electric IEC Magnetic Contactor is a TeSys Deca 3-pole reversing device with a 24 V AC coil. It is rated for operation within specified electrical parameters.

It features 3 main normally open contacts and provides 1 normally open/1 normally closed auxiliary contact (2 auxiliary contacts total) in a configuration intended for use with compatible load types as specified by manufacturer, with screw clamp terminals for wiring.

Key features:

• - Poles/phase: 3 poles, 3-phase
• - Action: capable of reversing operation when installed and used according to instructions
• - Coil voltage: 24 V AC
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Main contacts: 3 normally open
• - Contactor style/series: IEC, TeSys Deca
• - Electrical connections: Screw Clamp terminals
• - Enclosure/IP: rated with IP20 protection rating; enclosure requirements depend on application environment
• - Includes: components as provided; proper installation required
• - Mounting: DIN Rail, Plate
• - Included auxiliary contacts: Yes
• - Rated voltage: rated for use at voltages up to 690V AC within specified conditions
• - Frequency: 50/60 Hz
• - Full load amps: rated for continuous operation at indicated current levels under normal conditions
• - Rated making capacity: 250 A @ 440V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)
• - Fire rating: UL 94 V1
• - Weight: 0.687 kg
