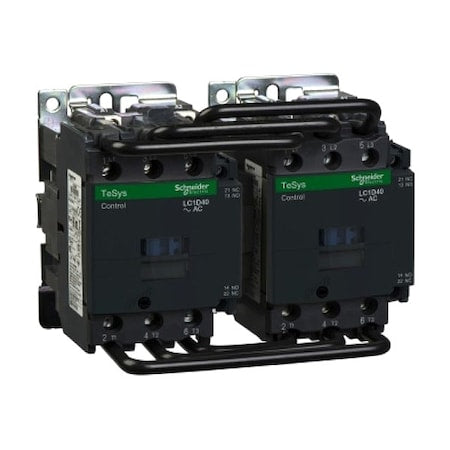

• Schneider Electric LC2D50G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Reversing, Screw Clamp
1 1

Schneider Electric LC2D50G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Reversing, Screw Clamp

Schneider Electric LC2D50G7 - IEC Magnetic Contactor, 1 NC/1 NO, 120 V AC, 3 P, Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC2D50G7
$1,116.15 USD
$1,116.15 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

Schneider Electric’s IEC Magnetic Contactor is a reversing, 3-pole switching device used to control power circuits in motor-control applications. Rated for operation with a 120 V AC coil; includes 3 normally open main contacts and an auxiliary contact arrangement of 1 NO/1 NC. Comes pre-assembled with screw-clamp terminals; compatible with plate or rail mounting options; includes a protective cover. It does not include an embedded surge suppressor and is rated IP20 for ingress protection.

Key features

  • - Action: Reversing
  • - Poles: 3
  • - Main Contacts: 3 NO
  • - Auxiliary Contacts: 1 NO / 1 NC
  • - Coil Voltage: 120 V AC
  • - Coil Type: Standard; Without built-in bidirectional peak limiting diode suppressor
  • - Embedded Surge Suppressor: Not included
  • - Terminals: Screw Clamp
  • - Assembly: Ready assembled
  • - Mounting: Plate; Rail
  • - Protective Cover: With
  • - IP Rating: IP20
  • - Ambient Operating Temperature Range: -5°C to +60°C (23°F to 140°F)
  • - Ambient Storage Temperature Range: -60°C to +80°C (-76°F to +176°F)
  • - Inrush Current Rating: Within specified parameters (see product specifications)
  • - Holding VA (Power Consumption): Within the specified range (see product specifications)
  • - Impulse Withstand Voltage: As per standards (see product specifications)
  • - Rated Insulation Voltage: According to applicable standards (see product specifications)
  • - Rated Making Capacity: 140 A (AC Control Circuit); 900 A at 440 V (Power Circuit)
  • - Rated Operational Current: Power circuit 50 A AC-3 at 60°C
  • - Maximum Operating Temperature: 140°F
  • - Maximum Voltage Rating: 120 V AC
  • - Width x Height x Depth: 165 mm x 132 mm x 142 mm
  • - Net Weight: 2.4 kg
  • - Standards/Certifications: CSA C22.2 No 14; EN 60947-4-1; EN 60947-5-1; IEC 60947-4-1; IEC 60947-5-1; UL 508; GL; UL; RINA; GOST; LROS; CCC; DNV; BV; UKCA
  • - Reversing Capability: Reversing
  • - Utilisation Category: AC-2; AC-3; AC-4
  • - Width: 165 mm
  • - Depth: 142 mm
    • 🏢
