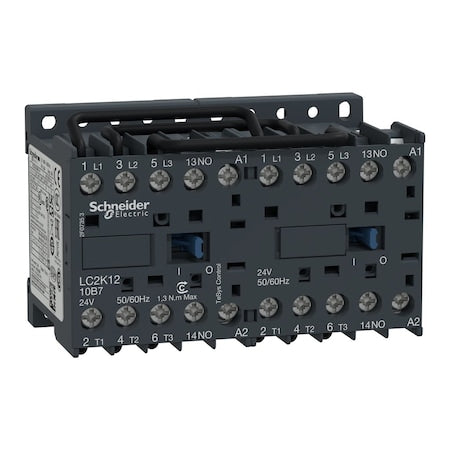

• Schneider Electric LC2K1210G7 - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Reversing, Screw Clamp
1 1

Schneider Electric LC2K1210G7 - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Reversing, Screw Clamp

Schneider Electric LC2K1210G7 - IEC Magnetic Contactor, 1 NO, 120 V AC, 3 P, Reversing, Screw Clamp

Brand: Schneider Electric SKU: LC2K1210G7
$238.70 USD
$238.70 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor LC2K is a three-pole, reversing action device with a 1NO auxiliary contact and a 120 V AC coil. It is a compact, electromagnetically operated switch rated for operation within specified load types and conditions. Designed for connection via screw clamp terminals; compatible with standard mounting options in industrial control panels.

Key features

  • - Series/Item: LC2K; Type: IEC Magnetic Contactor; Poles: 3; Action: Reversing; Auxiliary contact: 1NO
  • - Coil voltage: 120 V AC; Control circuit voltage range: 0.8–1.15 times the coil voltage; Drop-out voltage range: 0.2–0.75 times the coil voltage at 50°C
  • - Rated voltage: 690 V AC; Electrical connections: Screw Clamp Terminals; Mounting: Plate, Rail; IP rating: IP20
  • - Weight and dimensions: Net weight 0.39 kg; Width 90 mm; Height 58 mm; Depth 57 mm
  • - Electrical ratings: Full Load—Inductive 12 A; Resistive 20 A; Making capacity 144 A @ 690 V (Power), 110 A (Signalling) → electrical ratings are based on standardized testing conditions within specified parameters
  • - Fusing: 25 A (Power Circuit), 10 A (Signalling Circuit) → fuse ratings are provided according to applicable standards and should be selected based on actual application requirements
  • - Short-time withstand currents: 115 A (Power, 1 s); 105 A (Power, 5 s); 100 A (Power, 10 s); 80–110 A (Signalling, various durations) → short-time withstand current values are based on standardized testing procedures and do not imply continuous capability
  • - Insulation/ratings: Rated insulation voltage 600/690 V; Impulse withstand voltage 8 kV; Mechanical durability 5 Mcycles → insulation ratings specify tested maximum voltages under controlled test conditions; mechanical durability indicates expected operational cycles without guarantee of performance over time
  • - Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016 → conforms to recognized standards but does not guarantee specific performance outcomes beyond compliance with these standards
  • - Other: Reversing capability, 5 Mcycles mechanical durability, 4–top operational considerations such as switching and making capacity for both power and signalling circuits
    • 🏢
