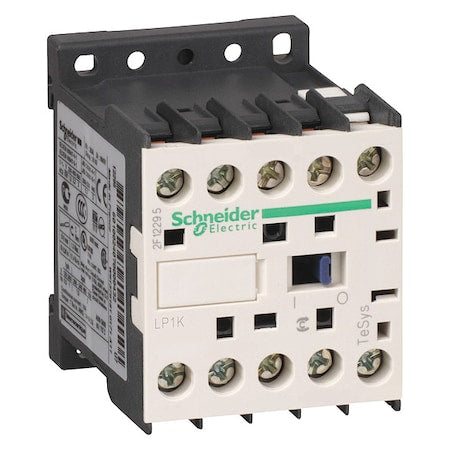

Schneider Electric LP1K0901BD - IEC Magnetic Contactor, No Auxiliary Contacts, 24 V DC, 3 P, Non-Reversing, Screw Clamp

Schneider Electric LP1K0901BD - IEC Magnetic Contactor, No Auxiliary Contacts, 24 V DC, 3 P, Non-Reversing, Screw Clamp

Brand: Schneider Electric SKU: LP1K0901BD
$104.30 USD
$104.30 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil and screw-clamp terminals. It has no auxiliary contacts and is part of the TeSys K series, rated for operation within specified control applications involving motor and resistive loads.

- Coil voltage: 24 V DC

  • - Poles: 3; Main contacts: 3 normally open
  • - Auxiliary contacts: None
  • - Reversing: Non-Reversing
  • - Frame/Series: TeSys K (IEC)
  • - Mounting/Termination: DIN Rail, Plate; Screw Clamp
  • - Maximum voltage: 690 V AC
  • - Full-load amps: rated for continuous operation at currents up to 20 A (resistive) and 9 A (inductive) under specified conditions
  • - Frequency: 50/60 Hz
  • - Impulse withstand: tested to withstand impulse voltages up to 8 kV as per applicable standards
  • - Dimensions: Height 2.28 in, Width 1.77 in, Depth 2.24 in
  • - Enclosure: open device without enclosure; suitable for installation in appropriate enclosures or environments as specified
  • - Weight: 0.225 kg
  • - Fire rating: complies with fire safety standards UL 94 V1, NF F 16-101, NF F 16-102 when installed according to manufacturer instructions
  • - Temperature range: -13°F to 122°F
  • - Fusing: 25 A (Power Circuit), 10 A (Signalling Circuit)
    • 🏢
