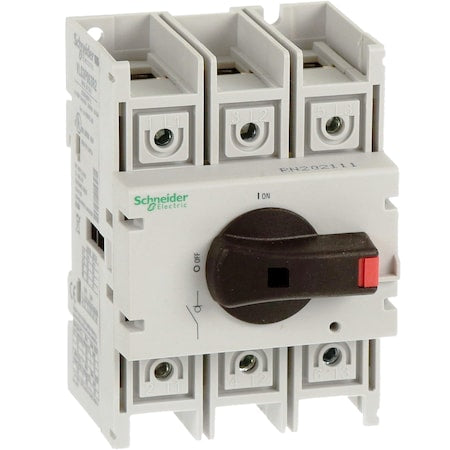

Schneider Electric VLS3P063R2 - Disconnect Switch, Nonfusible, 3 P, Three Phase, NEMA 1, 12, 3 R, 4, 4 X, Indoor, Rotary Handle

The SCHNEIDER ELECTRIC - VLS3P063R2 is a Safety Disconnect Switch intended for the interruption of electric current flow to specific circuits or equipment. Primarily used in industrial settings such as manufacturing, construction, and energy production, this device is used with the aim to reduce the risk of accidental startups or electrical shocks during servicing operations.

• Ambient Air Temperature For Operation: The switch is rated for operation within an air temperature range of -25-55°C.
• Breaking Capacity: With a breaking capacity ranging from 94.5 A at 690V AC-21A to 504 A at 690V AC-23A, the switch is designed to interrupt maximum currents at specified voltages.
• Connections-Terminals: The switch accommodates various types and sizes of terminal connections including power circuit screw clamp terminals for both solid (50-50 mm²) and flexible wires (70-70 mm²).
• Contact Form & Composition: The arrangement includes three normally open contacts indicating how many circuits it can control.
• Current Rating: It has a current rating of 63 A, indicating its design specification for carrying electrical current.
• Mechanical Durability & Robustness: Designed in accordance with IEC standards for resistance against physical stresses such as vibrations and shocks. Its design allows up to 30000 operational cycles under normal usage conditions.
• Housing Material & Resistance Properties: Constructed from non-metallic material tested for fire resistance up to temperatures of 960°C in accordance with IEC standards
