Sharpe 4371004900 - Gate Valve,8",CF8 M SS,Flange
Sharpe 4371004900 - Gate Valve,8",CF8 M SS,Flange
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

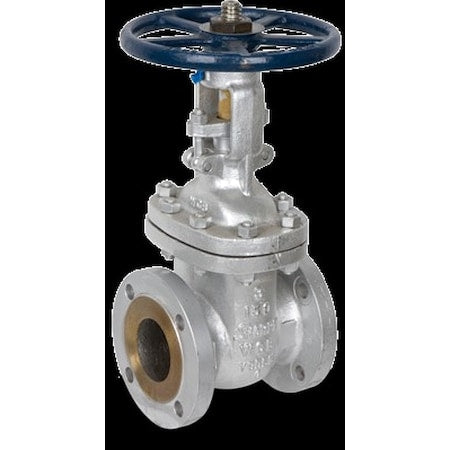

This Sharpe gate valve is an 8 in nominal size, Class 150 flanged valve (150# flange connection, ANSI Flange Class 150) with a CF8M stainless steel body, bonnet, and wedge. It has a rising stem (316 stainless steel), flexible wedge style, RPTFE seal, stainless steel seat, and a bolted bonnet with 8 flange bolt holes on each side. Maximum operating pressure is 275 psi (CWP), with an operating temperature range of -20°F to 450°F. It's rated for water media. The valve is operated via a wheel handle (ductile iron), with an inlet-to-outlet length of 11-1/2 in and a handle diameter of 13.78 in. The valve is certified to API 598, API 603, and ASME B16.34 standards. Manufactured in China. Specifications Nominal Valve Size: 8 in | Connection Type: 150# Flanged (Both Sides) | Valve/ANSI Flange Class: 150 Body/Bonnet/Wedge Material: CF8M Stainless Steel | Stem Material: 316 Stainless Steel Stem Type: Rising | Wedge Style: Flexible | Seal Material: RPTFE | Seat Material: Stainless Steel Bonnet Style: Bolted | Number of Flange Bolt Holes: 8 (per side) Max. Operating Pressure (CWP): 275 psi Operating Temperature Range: -20°F to 450°F For Media: Water Handle Type: Wheel | Handle Material: Ductile Iron | Handle Diameter: 13.78 in Inlet to Outlet Length: 11-1/2 in Standards: API 598, API 603, ASME B16.34
