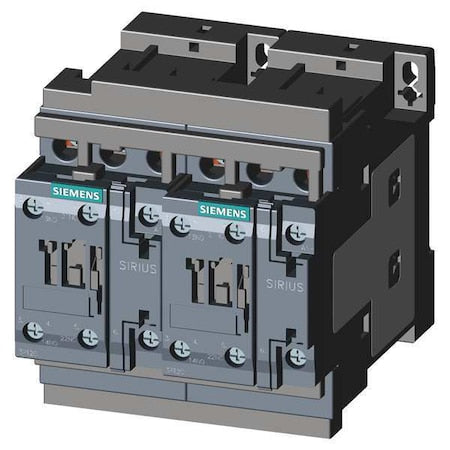

Siemens 3RA23288XB301AP6 - IEC Magnetic Contactor, 2 NC/2 NO, 220 V-240 V AC, 3 P, Reversing, Screw

The Siemens IEC Magnetic Contactor is an electrically operated switching device designed to control power circuits in accordance with IEC standards. It is a reversing, three-pole contactor with a coil voltage of 220–240 V AC. The unit belongs to the SIRIUS 3RA23 series and uses screw-type terminals. Mounting options include DIN Rail or Surface, with a vertical orientation, and the enclosure is listed as No Enclosure with an IP20 rating. It includes a mechanical interlock and auxiliary contacts.

Key features:

• - Reversing function: rated for controlling directional switching as per specifications
• - Poles: 3
• - Coil Voltage: 220–240 V AC
• - Auxiliary Contacts: 3 total (configuration 2NO/2NC; form 2NC/2NO)
• - Includes: Mechanical Interlock; Auxiliary Contacts: Yes
• - Frame Size: S0; Series: SIRIUS 3RA23
• - Mounting Style: DIN Rail, Surface; Mounting Position: Vertical
• - Terminal Connection Type: Screw
• - IP Rating: IP20; Enclosure: No Enclosure
• - Maximum Voltage Rating: 690 V AC; Frequency: 50/60 Hz
• - Phase: Three
• - Reversing: Yes
• - Full Load Current: Inductive 38 A, Resistive 50 A
• - Operating Temperature: -13°F to 140°F
• - Mechanical Durability: 10,000,000 cycles
• - Standards: REACH Art 33, WEEE (2012/19/EU)
