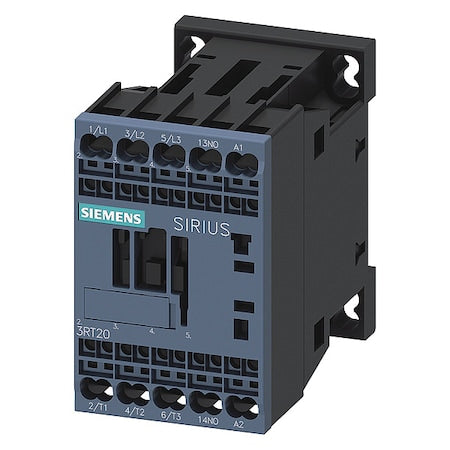

Siemens 3RT20152AF01 - IEC Magnetic Contactor, 1 NO, 110 V AC, 3 P, Non-Reversing, Spring Type

Siemens 3RT20152AF01 - IEC Magnetic Contactor, 1 NO, 110 V AC, 3 P, Non-Reversing, Spring Type

Brand: Siemens SKU: 3RT20152AF01
$86.10 USD
$86.10 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing switching device with 1 normally-open auxiliary contact. It operates from a 110 V AC coil and uses an electromagnetic mechanism to open or close its main contacts, enabling control of motors, lighting, and other industrial loads. Constructed to meet IEC standards; intended for use in control panels requiring standardized sizing and interchangeability. Part of the SIRIUS 3RT20 family (Frame Size S00); equipped with a spring-type electrical connection.

Key features

  • - Coil Voltage: 110 V AC
  • - Poles/Main Contacts: 3 poles; 3 normally open main contacts
  • - Auxiliary Contacts: 1 NO (Form 1NO)
  • - Reversing Capability: Non-Reversing
  • - Frame/Series: Frame Size S00; Series SIRIUS 3RT20
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
  • - Frequency: 50/60 Hz
  • - Maximum Voltage Rating: 690 V AC
  • - IP Rating: IP20
  • - Embedded Surge Suppressor: No
  • - Electrical Connection: Spring Pulley; Terminal Connection Type: Spring Type
  • - Mounting Style: DIN Rail, Surface
  • - Overall Dimensions: Depth 2.92 in; Height 3.08 in; Width 1.97 in
  • - NEMA Enclosure Rating: No Enclosure
  • - Full Load Current: Inductive 7 A; Resistive 18 A
  • - HP Ratings: 1/4 hp @ 120 V; 3/4 hp @ 240 V; 1 1/2 hp @ 208 V (3-phase); 2 hp @ 240 V (3-phase); 3 hp @ 480 V (3-phase); 5 hp @ 575 V (3-phase)
  • - Mechanical Durability: 30,000,000 cycles

    - Overall dimensions provided for reference only; actual measurements may vary slightly depending on manufacturing tolerances.

  • - NEMA enclosure rating not specified; consult product documentation for enclosure details if necessary.
    • 🏢
