• Siemens 3RT20161AB02 - IEC Magnetic Contactor, 1 NC, 24 V AC, 3 P, Non-Reversing, Screw
1 1

Siemens 3RT20161AB02 - IEC Magnetic Contactor, 1 NC, 24 V AC, 3 P, Non-Reversing, Screw

Siemens 3RT20161AB02 - IEC Magnetic Contactor, 1 NC, 24 V AC, 3 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT20161AB02
$72.15 USD
$72.15 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

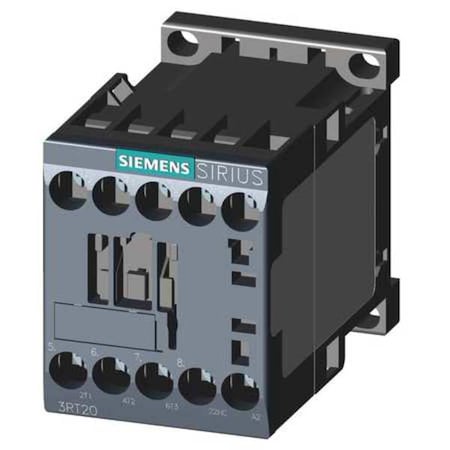

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-driven switch (24 V AC) designed to control power circuits in accordance with IEC standards. It uses screw terminals and is part of the SIRIUS 3RT20 family (Frame S00), with one auxiliary contact (1NC). The device is designed for use within the specified voltage range of up to 690 V AC in three-phase applications, and features mounting options on DIN Rail or surface mounting, with no enclosure and IP20 protection. Overall dimensions are approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D).

- Coil voltage: 24 V AC

  • - Action: Non-Reversing; Reversing: No
  • - Auxiliary contacts: 1 (1NC); Includes Auxiliary Contacts: Yes
  • - Poles/Phase: 3; Phase: Three
  • - Terminal connection: Screw
  • - Frame size/Series: S00; Series: SIRIUS 3RT20
  • - Enclosure: No Enclosure; IP Rating: IP20
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
  • - Frequency: 50/60 Hz
  • - Maximum voltage: 690 V AC
  • - Full Load Amps: Inductive 9 A; Resistive 22 A
  • - HP @ Three Phase: 208V 2 hp; 240V 3 hp; 480V 5 hp; 600V 7 1/2 hp
  • - Max Operating Watts: 4 kW (at 400V, AC-3); 13 kW (at 400V, AC-1)
  • - Mechanical durability: 30,000,000 cycles
  • - Overall dimensions: approximately 1.97 inches (W) x 3.08 inches (H) x 2.45 inches (D)
    • 🏢
