• Siemens 3RT20171BB42 - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw
1 1

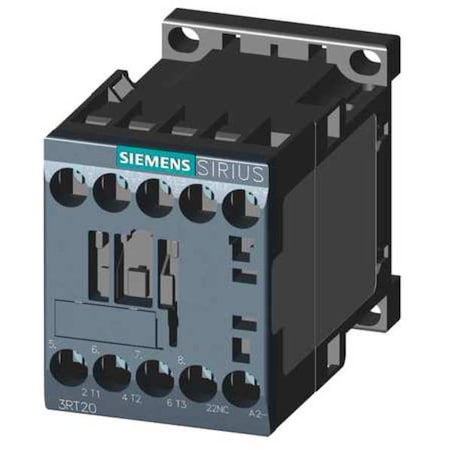

Siemens 3RT20171BB42 - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Siemens 3RT20171BB42 - IEC Magnetic Contactor, 1 NC, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT20171BB42
$141.69 USD
$141.69 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switching device rated for operation within IEC standards. It operates with a 24 V DC coil; features include one auxiliary contact (1NC). Supports DIN Rail or surface mounting in a vertical orientation; part of the SIRIUS 3RT20 series, Frame Size S00.

Key features

  • - Coil voltage: 24 V DC
  • - Action: Non-Reversing
  • - Poles and contacts: 3 poles; main contacts 3 normally open (3 NO); auxiliary contact 1NC
  • - Includes one auxiliary contact (1NC)
  • - Frame/Series: Frame Size S00; Series SIRIUS 3RT20
  • - Terminals: Screw
  • - Mounting: DIN Rail, Surface; Mounting Position: Vertical
  • - Rated for IP20 protection; enclosure details are specified accordingly.
  • - Rated for operation up to 690 V AC within specified conditions.
  • - Designed to operate at full load currents of up to 12 A inductive and 22 A resistive under specified conditions.
  • - Has an operational lifespan based on mechanical cycling as per manufacturer specifications.
  • - Rated for use within temperature ranges from -13 °F to 140 °F (-25 °C to +60 °C).
  • - Dimensions (overall): Width 2.45 in; Height 1.95 in; Depth 3.2 in
  • - Mounting details: Mounting hole diameter 0.2 in; hole distances 1.97 in (height) and 1.38 in (width)
  • - Phase: Three
  • - Reversing: No
  • - Max operating watts: 6 kW (400 V, AC-3); 13 kW (400 V, AC-1)
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
    • 🏢
