• Siemens 3RT20171BB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw
1 1

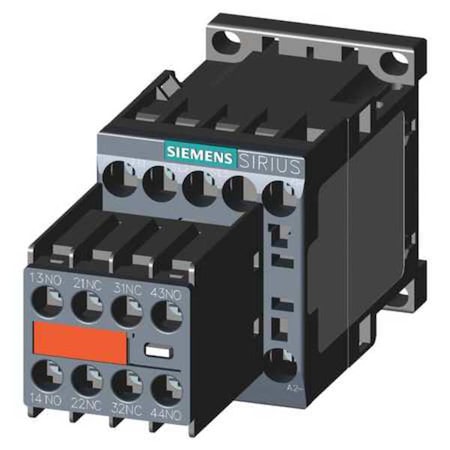

Siemens 3RT20171BB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw

Siemens 3RT20171BB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT20171BB443MA0
$160.22 USD
$160.22 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is rated for operation within IEC standards specifications. It is a 3-pole, non-reversing unit with a 24 V DC coil, configured with four auxiliary contacts (2 NO / 2 NC) and screw terminals for wiring. The device is part of the SIRIUS 3RT Safety Contactors series (Frame B, Frame Size S00) and includes an auxiliary contact; enclosure type and IP rating are as specified.

- Action: Non-Reversing

  • - Poles: 3
  • - Coil Voltage: 24 V DC
  • - Auxiliary Contacts: 4 (2 NO / 2 NC)
  • - Main Contacts: 3 Normally Open
  • - Termination: Screw
  • - Enclosure / IP Rating: enclosure type and IP rating are as specified; no implied safety guarantee beyond compliance with standards
  • - Mounting Style: DIN Rail, Surface
  • - Series / Frame Size: SIRIUS 3RT Safety Contactors; Frame B; Frame Size S00
  • - Maximum Voltage Rating: rated for operation up to 690V AC within specified conditions
  • - Full Load Amps: Inductive 12 A; Resistive 22 A
  • - HP Ratings (selected): 1/2 hp @ 120V; 2 hp @ 230V; 2 hp @ 240V; 3 hp @ 208V (3-phase); 3 hp @ 240V; 7 1/2 hp @ 480V; 10 hp @ 575V
  • - IP Rating / Standards: IP20; REACH Art 33, WEEE (2012/19/EU)
  • - Mechanical Durability: 30,000,000 cycles
  • - Operating Temperature: -13 to 140 Degrees F
  • - Response Time: AC/DC operation delays provided (ranges vary by mode)
  • - Maximum Operating Watts: 6 kW (400V, AC-3); 13 kW (400V, AC-1)
  • - Note: Inductive Full Load Amps, HP Ratings, Standards, Durability, Temperature Range, Response Time, Operating Watts — all these specifications describe the product's rated capabilities but do not constitute guarantees of performance under all conditions.
    • 🏢
