• Siemens 3RT20261AN20 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw
1 1

Siemens 3RT20261AN20 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw

Siemens 3RT20261AN20 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT20261AN20
$166.76 USD
$166.76 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

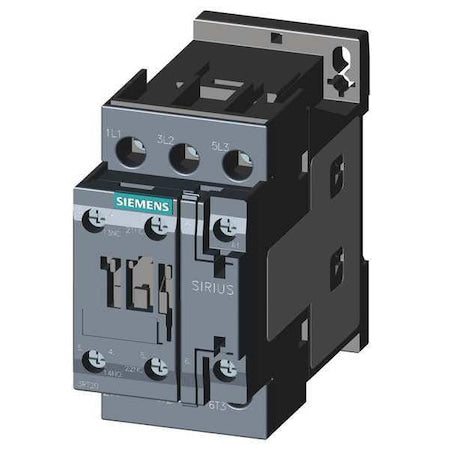

The Siemens IEC Magnetic Contactor is a three-pole device compatible with IEC standards. It includes two auxiliary contacts (one normally open, one normally closed) and three main contacts that are normally open. The coil operates at 208 V AC; wiring connections are made via screw terminals. It is part of the SIRIUS 3RT20 series (frame S0). This product does not include an enclosure but has an IP20 ingress protection rating (not enclosed).

- Item: IEC Magnetic Contactor; Series/Frame: SIRIUS 3RT20, Frame Size S0

  • - Poles/Contacts: 3 poles; 3 normally open main contacts; 2 auxiliary contacts (1NO/1NC)
  • - Auxiliary Contacts: 2 total; Configuration 1NO/1NC
  • - Coil Voltage: 208 V AC
  • - Action: Non-Reversing; Reversing: No
  • - Electrical Connection: Screw terminals
  • - Enclosure/IP: IP20 ingress protection rating (enclosure not included)
  • - Maximum Voltage Rating: 690 V AC
  • - Frequency: 50/60 Hz
  • - Full Load Amps: Inductive 25 A; Resistive 40 A
  • - Full Load Currents: Inductive 25 A; Resistive 40 A
  • - HP @ Various Voltages (Single/Three Phase): 2 hp @ 120V; 3 hp @ 230V; 3 hp @ 240V; 5 hp @ 208V (3-phase); 7.5 hp @ 240V (3-phase); 15 hp @ 480V (3-phase); 20 hp @ 575V (3-phase); 20 hp @ 600V (3-phase)
  • - Dimensions: Width 2.15 in; Height (overall) 3.55 in; Depth (overall) 4.1 in; Mounting Style: DIN Rail, Surface; Mounting Position: Vertical; Mounting Hole Diameter: 0.19 in; Hole Distances: Height 2.36 in; Width 1.38 in
  • - Standards/Compliance: REACH Art 33, WEEE
  • - Response Time (AC/DC variations): AC closing 4–16 ms; AC opening 4–16 ms; DC opening 16–17 ms; DC closing 50–170 ms
  • - Includes Auxiliary Contacts: Yes
  • - Other: Max. Operating Watts 11 kW (AC-3 at 400V), 23 kW (AC-1 at 400V); Mechanical Durability 10,000,000 cycles; Operating Temp Range -13°F to 140°F
    • 🏢
