• Siemens 3RT20262AG20 - IEC Magnetic Contactor, 1 NC/1 NO, 110 V AC, 3 P, Non-Reversing, Spring Type
1 1

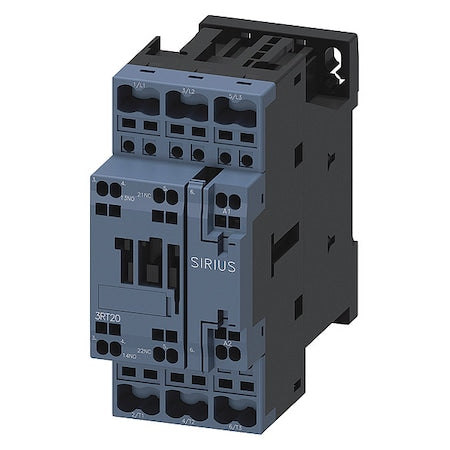

Siemens 3RT20262AG20 - IEC Magnetic Contactor, 1 NC/1 NO, 110 V AC, 3 P, Non-Reversing, Spring Type

Siemens 3RT20262AG20 - IEC Magnetic Contactor, 1 NC/1 NO, 110 V AC, 3 P, Non-Reversing, Spring Type

Brand: Siemens SKU: 3RT20262AG20
$194.01 USD
$194.01 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is rated for operation within IEC standards. It uses an electromagnetic coil to open or close contacts, suitable for switching motors, lighting, and other industrial loads when used within specified parameters. This 3-pole model features a 110 V AC coil; rated as non-reversing; electrical connection: spring terminal type. It includes two auxiliary contacts (1NO/1NC) and belongs to the SIRIUS 3RT20 family (Frame Size S0); compatible with DIN Rail or Surface mounting in vertical orientation.

- Auxiliary contacts: 2 total (1 NO / 1 NC)

  • - Auxiliary contact configuration: 1NO/1NC
  • - Coil voltage: 110 V AC
  • - Poles: 3; Main contacts: 3 normally open
  • - Reversing capability: Rated as non-reversing; intended for applications requiring non-reversing operation
  • - Frame/Series/Code: SIRIUS 3RT20; Frame Size: S0
  • - Mounting style: DIN Rail or Surface; Mounting position: Vertical
  • - Electrical connection: spring terminal type
  • - Maximum voltage: rated for use at voltages up to 690 V AC; suitable for three-phase systems at frequencies of 50/60 Hz
  • - IP Rating: IP20; Enclosure: No Enclosure
  • - Includes auxiliary contacts: Yes
  • - Mechanical operating durability: 10,000,000 cycles
  • - Watts loss: 1.9 W (current dependent); 10.5 W (current independent)
  • - Dimensions: Depth 97 mm; Height 102 mm; Width 45 mm; Overall Depth 4.26 in; Overall Height 4.18 in; Overall Width 2.13 in
    • 🏢
