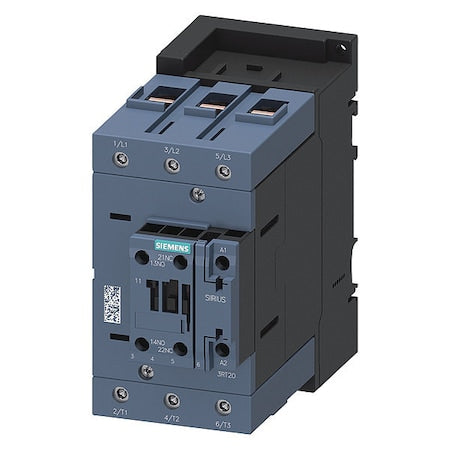

Siemens 3RT20461AM20 - IEC Magnetic Contactor, 1 NC/1 NO, 208 V AC, 3 P, Non-Reversing, Screw

The IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device that uses an electromagnetic coil to open or close contacts and switch power circuits for motors, lighting, and other loads. It is rated for operation within the specified voltage range of 208 V AC and uses screw terminals for wiring. This unit is part of the SIRIUS 3RT20 family (frame size S3) and includes two auxiliary contacts with standard configurations.

Key features:

• - Poles: 3
• - Auxiliary contacts: 2 total (standard configurations)
• - Coil voltage: 208 V AC
• - Reversing: Non-Reversing
• - Series/Frame: SIRIUS 3RT20, Frame Size S3
• - Electrical connection: Screw
• - Enclosure: No Enclosure; IP20
• - Rated for use up to a maximum voltage of 1000 V AC
• - Full Load Amps: Inductive 96 A; Resistive 130 A
• - HP @ 3 Phase: 208V 30 hp; 240V 30 hp; 480V 75 hp; 575V 75 hp
• - Frequency: 50/60 Hz
• - Has an expected mechanical lifespan based on typical usage conditions
• - Designed to operate within the specified temperature range of -13 °F to 140 °F
• - Dimensions: Height 5.51 in; Width 2.76 in; Depth 5.98 in
• - Mounting style: DIN Rail, Surface
• - Mounting hole diameter: 0.20 in
• - Mounting hole distance (Height): 5.12 in; (Width): 2.36 in
• - Embedded surge suppressor: No
• - Standards: REACH Art 33, WEEE (2012/19/EU)
