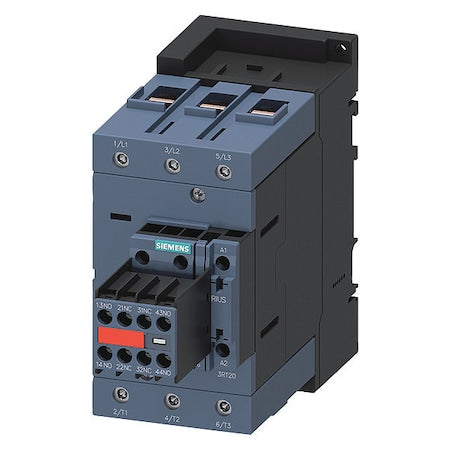

• Siemens 3RT20461KB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw
1 1

Siemens 3RT20461KB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw

Siemens 3RT20461KB443MA0 - IEC Magnetic Contactor, 2 NC/2 NO, 24 V DC, 3 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT20461KB443MA0
$875.26 USD
$875.26 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style magnetic switch rated for operation within the specified voltage ranges. It operates with a 24 V DC coil and includes four auxiliary contacts configured as 2NO/2NC (3 NO main contacts). The device uses screw terminals and supports specified mounting options; does not include an enclosure (IP20). It is part of the SIRIUS 3RT Safety Contactors series, frame size S3, and includes surge suppression features as specified.

Key features

  • - Coil voltage: 24 V DC
  • - Poles and contacts: 3 poles; 4 auxiliary contacts (2NO/2NC); 3 normally open main contacts
  • - Reversing: Non-Reversing
  • - Surge suppression: Includes surge suppression features as specified
  • - Frame/Series: S3; SIRIUS 3RT Safety Contactors
  • - Mounting: Supports specified mounting options; does not include an enclosure
  • - Terminals: Screw connections
  • - Enclosure/IP: IP20; No enclosure
  • - Rated for operation up to 1000 V AC within manufacturer specifications
  • - Full load current: 96 A inductive; 130 A resistive
  • - Power ratings: Suitable for applications within these power ratings when used according to instructions (AC-3 up to 45 kW at 400 V; AC-1 up to 86 kW at 400 V)
  • - Operating temperature: -13°F to 140°F
  • - Has been tested for high cycle counts under standard conditions
  • - Dimensions: 2.76 in W × 5.51 in H × 7.68 in D
  • - Mounting details: mounting holes 0.20 in diameter; hole spacing 5.12 in (height) × 2.36 in (width)
  • - Standards/compliance: REACH Art 33, WEEE (2012/19/EU)
    • 🏢
