• Siemens 3RT23171AK60 - IEC Magnetic Contactor, 4 NO, 110 V-120 V AC, 4 P, Non-Reversing, Screw
1 1

Siemens 3RT23171AK60 - IEC Magnetic Contactor, 4 NO, 110 V-120 V AC, 4 P, Non-Reversing, Screw

Siemens 3RT23171AK60 - IEC Magnetic Contactor, 4 NO, 110 V-120 V AC, 4 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT23171AK60
$135.15 USD
$135.15 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

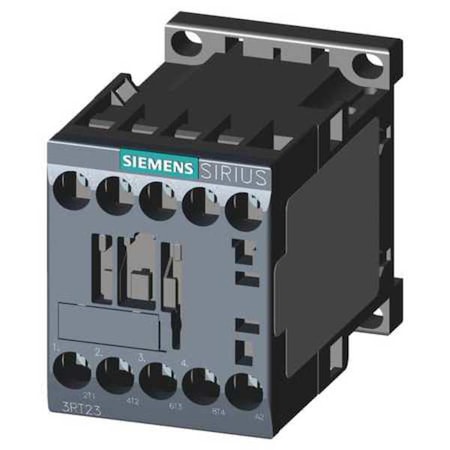

Siemens IEC Magnetic Contactor, 4NO, 110–120 V AC coil, 4-pole, non-reversing.

This IEC-standard, electrically operated switching device rated for controlling power circuits with a 4-pole main contact arrangement and four normally open auxiliary contacts.

It features screw terminals, supports DIN Rail or surface mounting. The enclosure options include No Enclosure; rated for use in environments with IP20 protection level for 3-phase applications as part of the SIRIUS 3RT23 series (frame size S00).

- Coil Voltage: Rated for operation within the specified voltage range of 110–120 V AC.

  • - Action / Reversing: Non-reversing configuration.
  • - Poles / Main Contacts: 4 poles, 4 normally open main contacts; 0 normally closed
  • - Auxiliary Contacts: 4 NO (auxiliary)
  • - Frame Size / Series: S00, SIRIUS 3RT23
  • - Phase: 3; Frequency: 50/60 Hz
  • - Full Load Amps: Inductive 12 A; Resistive 20 A
  • - Max Operating Power Ratings: Up to approximately 4 kW at 400 V AC under specific conditions; actual performance may vary depending on application parameters.
  • - IP Rating / Enclosure: IP20; No Enclosure
  • - Terminal Connection: Screw
  • - Mounting Style: DIN Rail, Surface
  • - Mounting Details: Mounting hole diameter 0.20 in; Height 1.97 in; Width 1.38 in; Mounting Position: Vertical
  • - Overall Dimensions: Overall Dimensions are provided but should be verified against installation requirements before use.
  • - Operating Temp: Operating temperature range includes typical ambient conditions but should be confirmed suitable for specific environments prior to deployment.
  • - Mechanical Durability: 30,000,000 cycles
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
  • - Includes Auxiliary Contacts: Yes
  • - Item: IEC Magnetic Contactor
  • - Reversing: No
  • - Width: 1.77 in
    • 🏢
