• Siemens 3RT25161AP60 - IEC Magnetic Contactor, No Auxiliary Contacts, 220 V-240 V AC, 4 P, Non-Reversing, Screw
1 1

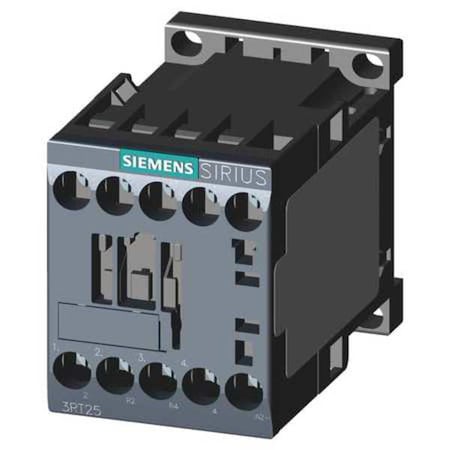

Siemens 3RT25161AP60 - IEC Magnetic Contactor, No Auxiliary Contacts, 220 V-240 V AC, 4 P, Non-Reversing, Screw

Siemens 3RT25161AP60 - IEC Magnetic Contactor, No Auxiliary Contacts, 220 V-240 V AC, 4 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT25161AP60
$92.53 USD
$92.53 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SIEMENS - IEC Magnetic Contactor is a non-reversing, 4-pole device with no auxiliary contacts. It operates on a coil voltage of 220V-240V AC and has an electrical connection via screws. The contactor is part of the SIRIUS 3RT25 series and comes in an S00 frame size. With its DIN rail or surface mounting style, it can be positioned vertically for installation. The device does not include any enclosure but boasts an IP20 rating for protection against touch by fingers and objects greater than 12mm.

Key features of this product include:

  • - A full load current capacity for both inductive (9A) and resistive loads (16A).
  • - Horsepower ratings at different phases: 1/3 hp at single phase -120V AC, 1 hp at single phase -230V/240V AC, 3 hp at three-phase -240V AC, and up to 5hp at three-phase -480V AC.
  • - Maximum operating watts vary depending on conditions: reaching up to 11 kW (at 400V, AC-4), down to as low as 4 kW (at 400V, AC-3), or back up to a maximum of again11 kW (at the highest level of operation; i.e.,400v ,AC-1)
  • -The main contact configuration includes two normally closed main contacts along with two normally open ones.
  • -The mechanical operating durability is rated for up to approximately thirty million cycles under standard conditions.
  • -The device is designed for operation within a temperature range of -13 degrees F to140 degrees F.
    • 🏢
