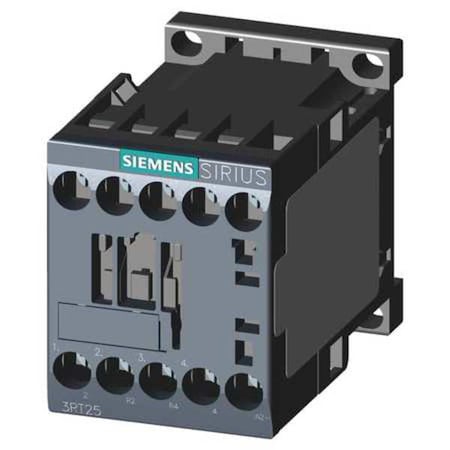

• Siemens 3RT25171AK60 - IEC Magnetic Contactor, No Auxiliary Contacts, 110 V-120 V AC, 4 P, Non-Reversing, Screw
1 1

Siemens 3RT25171AK60 - IEC Magnetic Contactor, No Auxiliary Contacts, 110 V-120 V AC, 4 P, Non-Reversing, Screw

Siemens 3RT25171AK60 - IEC Magnetic Contactor, No Auxiliary Contacts, 110 V-120 V AC, 4 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT25171AK60
$120.98 USD
$120.98 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing switch rated for switching applications within specified parameters. It is designed for operation with a coil voltage of 110–120 V AC and has no auxiliary contacts. It uses an S00 frame (SIRIUS 3RT25 series) and is compatible with DIN rail and surface mounting methods.

- Poles: 4

  • - Action: Non-Reversing
  • - Reversing: No
  • - Auxiliary Contacts: No
  • - Coil Voltage: 110–120 V AC
  • - Frame Size / Series: S00; SIRIUS 3RT25
  • - Mounting Style: DIN Rail, Surface
  • - Terminal Connection: Screw
  • - Frequency: 50/60 Hz
  • - Phase: 3
  • - IP Rating: IP20
  • - Enclosure: No Enclosure
  • - Full Load Amps: rated for full load currents of up to 12 A (inductive) and 20 A (resistive) under specified conditions
  • - HP (Single Phase / Volts): rated horsepower at specified voltages within the product's operational specifications
  • - HP (Three Phase / Volts): rated horsepower at specified voltages within the product's operational specifications
  • - Max Operating Watts: maximum operating wattage ratings based on standard test conditions and application types
  • - Operating Temperature: -13°F to 140°F
  • - Mechanical Durability: mechanical durability rating based on testing standards but does not imply guaranteed lifespan in all conditions
  • - Mounting Details: Mounting Hole Diameter 0.2 in; Hole Distances Height 1.97 in; Width 1.38 in
  • - Overall Dimensions: 3.08 in H × 1.97 in W × 2.45 in D
  • - Includes: S00 Frame
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
  • - Embedded Surge Suppressor: No
  • - Number of Auxiliary Contacts: 0
  • - Normally Closed Main Contacts: 2
  • - Normally Open Main Contacts: 2
  • - Item: IEC Magnetic Contactor
  • - Reversing Capability: Non-Reversing
    • 🏢
