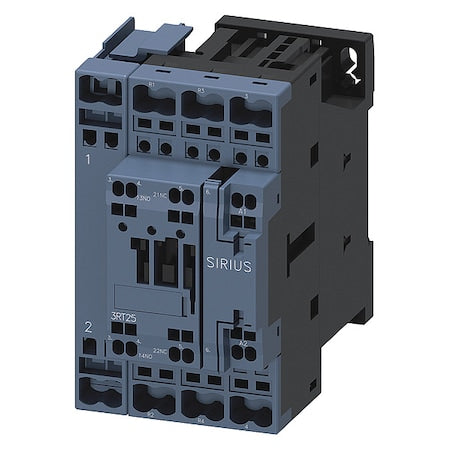

• Siemens 3RT25262AP00 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 4 P, Non-Reversing, Screw
1 1

Siemens 3RT25262AP00 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 4 P, Non-Reversing, Screw

Siemens 3RT25262AP00 - IEC Magnetic Contactor, 1 NC/1 NO, 230 V AC, 4 P, Non-Reversing, Screw

Brand: Siemens SKU: 3RT25262AP00
$160.22 USD
$160.22 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This 4-pole, non-reversing model has a coil voltage rating of 230 V AC and conforms to the specifications of the SIRIUS 3RT25 series, frame size S0. It is equipped with auxiliary contacts; contains two normally closed and two normally open main contacts, and supports mounting via DIN Rail or surface mounting methods.

- Coil Voltage: 230 V AC

  • - Poles: 4
  • - Reversing Capability: Non-Reversing
  • - Main Contacts: 2 NC / 2 NO
  • - Auxiliary Contacts: 4 total (1NO/1NC and 1NC/1NO configurations)
  • - Frame Size: S0
  • - Mounting Method: DIN Rail or Surface mounting
  • - Terminal Connection Type: Screw
  • - IP Rating: IP20
  • - Frequency: 50 Hz
  • - Series: SIRIUS 3RT25
  • - Standards: REACH Art 33, WEEE (2012/19/EU)
  • - Embedded Surge Suppressor: No
  • - NEMA Enclosure Rating: No Enclosure
  • - Max Operating Watts: rated for maximum operating wattages as specified under standard conditions at 400 V in AC-4, AC-1, and AC-3 categories
  • - Full Load Amps: Inductive 25 A; Resistive 40 A
  • - Mechanical Durability: designed for mechanical durability up to approximately 30 million cycles under normal operating conditions
  • - Mounting Hole Diameter: 0.19 in
  • - Mounting Hole Distances: Height 2.95 in, Width 1.38 in
  • - Overall Dimensions: 4.41 in (Depth) x 5.16 in (Height) x 3.00 in (Width) (112 mm x 131 mm x 76 mm)
  • - Includes Auxiliary Contacts: Yes
  • - Item: IEC Magnetic Contactor
  • - Frame / Series / Class: S0
    • 🏢
