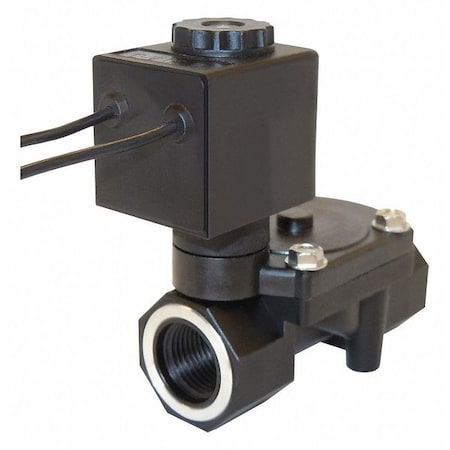

Spartan Scientific 3585-020-9232B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 12 VDC, Remote Pilot, Buna N
Spartan Scientific 3585-020-9232B - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 12 VDC, Remote Pilot, Buna N
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The SPARTAN SCIENTIFIC 3585-020-9232B is a normally closed, 2-way, pilot-operated solenoid valve designed for use with air and water per fluid compatibility: Air, Water. It features a diaphragm valve design with a straight body style made of glass-filled nylon. The valve controls fluid flow by using an internal pilot actuator and has an orifice diameter of 1/2 inch. It operates with a nominal voltage of 12 VDC and includes the coil and sealing components required for installation. Outdoor rated; IP65; NEMA 4 environmental ratings per specification, and offers remote, automated flow control with a wire leads electrical connection.
Key Features:
- - Valve Type: Remote Pilot, Pilot Operated
- - Valve Configuration: 2-Way, 2-Position, Normally Closed
- - Body Material: Glass Filled Nylon
- - Orifice Diameter: 1/2 in
- - Connection Types: NPT inlet and outlet with NPT thread type
- - Operating Voltage: 12 VDC
- - Wattage: 6.5 W
- - Electrical Connections: Wire Leads
- - Coil Enclosure: Watertight, Dust Tight
- - Coil Insulation Class: F
- - Included Components: Coil and Seal
- - Fluid Compatibility: Air, Water
- - Operating Pressure Differential: 10 psi minimum; 150 psi maximum for air, light oil, and water
- - Temperature Ratings: Ambient 50°F to 122°F; fluid maximum temperature 194°F
- - Environmental and Mechanical Ratings: Outdoor rated, IP65, NEMA 4
- - Dimensions: Overall Height 3-3/16 in; Length 2-23/32 in; Width 1-1/2 in
- - Flow Coefficient (Cv): 2.45
- - Seal Material: Buna N
- - Standards: CE certified
