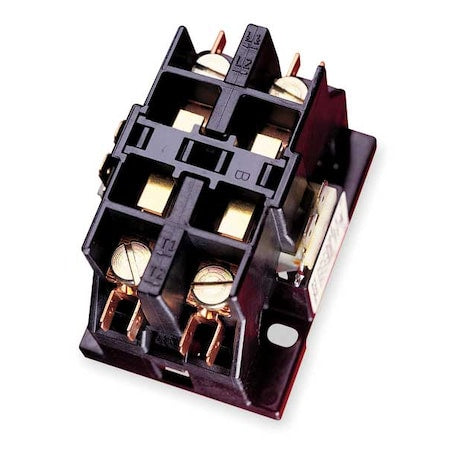

Square D 8910DP42V02 - Definite Purpose Magnetic Contactor, 120 V AC, 2 P, Non-Reversing, 1 Phase, Box Lug & Quick Connect

The SQUARE D - 8910DP42V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Coil Voltage: Rated for operation within the specified voltage range of 120V AC.
• Control Circuit Voltage: Requires specific voltage for operation which can vary based on frequency and geographical region (120 V AC 60 Hz; 110 V AC 50 Hz).
• Electrical Connection: Can be attached to an electrical circuit using box lugs or quick connect terminals.
• Frequency: Specified for use with power systems operating at frequencies of either 50 Hz or 60 Hz. Compatibility outside these ranges is not guaranteed.
• Full Load Amps-Inductive & Resistive: Designed to operate with inductive loads up to a certain limit (40 A Inductive; 50 A Resistive) and resistive loads up to another limit (50A Resistive). Overheating or damage may occur if these limits are exceeded.
• Horsepower @ Single Phase - Rated for operation with single-phase power supplies, supporting specific horsepower levels depending on the supply voltage: supports up to 2hp at a supply voltage of 120VAC and up to 5hp at a supply voltage of 240VAC.
• Pole Contact Composition: Arrangement includes two Normally Open contacts determining how circuits are controlled during operation.
