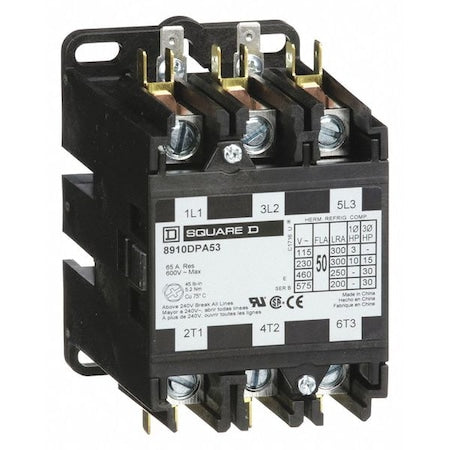

Square D 8910DPA53V14 - Definite Purpose Magnetic Contactor, 24 V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect

The SQUARE D - 8910DPA53V14 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing – The contactor functions with a constant current flow direction.
• Coil Voltage: Rated for operation within the specified voltage range of 24V AC.
• Electrical Connection: Quick connect terminals; Box lugs – These are the methods by which this contactor can be attached to an electrical circuit.
• Enclosure Type: Open – No additional protective casing around the contactor against environmental factors such as dust and moisture.
• Full Load Amps-Inductive/Resistive: Rated for handling up to 50 A with inductive loads (like motors or transformers) and up to 65 A with resistive or heating loads. Overheating or damage may occur if these limits are exceeded.
• Horsepower @ Single Phase/Three Phase - Specified for managing varying levels, from a maximum horsepower of 3 hp at single phase power supply of 120 volts, to a maximum horsepower of 30 hp at three-phase power supply of 480 volts. Exceeding these specifications could affect performance and safety.
• Pole Contact Composition: Comprises three Normally Open (NO) contacts that determine how electrical circuits are controlled during operation
