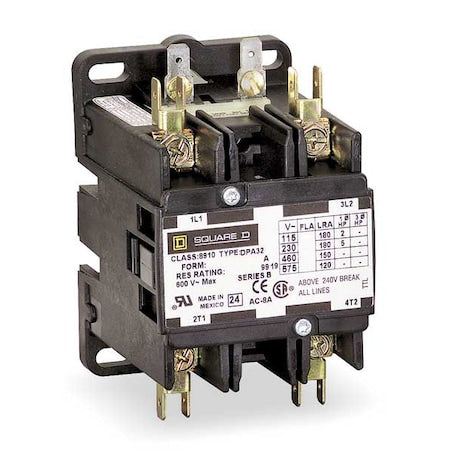

Square D 8910DPA92V09 - Definite Purpose Magnetic Contactor, 208 V-240 V AC, 2 P, Non-Reversing, 1 Phase

The SQUARE D - 8910DPA92V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device that controls the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on requirements. This tool is commonly utilized for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.

• Action: Non-Reversing – this indicates that the current flow direction remains constant during operation.
• Coil Voltage: Operates within a voltage range of 208-240V AC which triggers it to open or close an electrical circuit.
• Electrical Connection: Equipped with quick connect terminals and box lugs for easy attachment to an electrical circuit.
• Full Load Amps-Inductive/Resistive: Rated for operation with inductive loads like motors or transformers up to 90A, and resistive or heating loads up to 120A within the specified ranges.
• Horsepower @ Single Phase - 240V AC: Rated for operation with a power output control capacity of up to 20 horsepower within the specified range of a single-phase, 240-volt alternating current system.
• Pole Contact Composition: Comprises two Normally Open (NO) contacts which determine how electrical circuits are controlled during operation.
• Product Certifications: Certified by UL and CSA testing organizations as meeting their standards for use in various industrial applications
