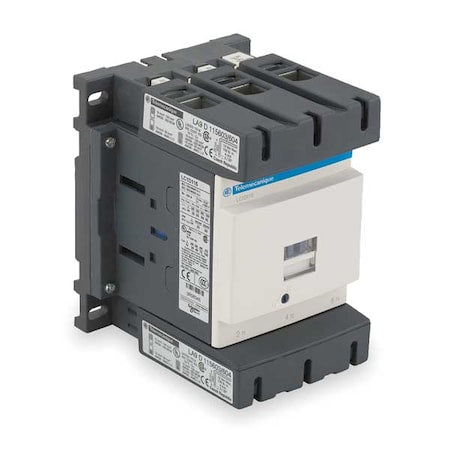

• Square D LC1D150BD - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 3 P, Non-Reversing, Screw Clamp
1 1

Square D LC1D150BD - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 3 P, Non-Reversing, Screw Clamp

Square D LC1D150BD - IEC Magnetic Contactor, 1 NC/1 NO, 24 V DC, 3 P, Non-Reversing, Screw Clamp

Brand: Square D SKU: LC1D150BD
$916.68 USD
$916.68 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The SQUARE D - IEC Magnetic Contactor is a non-reversing, three-pole device designed for motor control and resistive load applications. It operates with a coil voltage of 24V DC and features an auxiliary contact configuration of 1NO/1NC. The contactor has an average impedance of 0.6 mOhm and can withstand damp heat as per the IACS E10 standard. Its connections are facilitated through screw clamp terminals that accommodate various cable stiffness types.

Key Features:

  • - Auxiliary Contacts Type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1
  • - Associated Fuse Rating: Rated for operation with a fuse rating of up to 315 A gG at less than or equal to 690 V coordination type for power circuit.
  • - Electrical Durability: Electrical operating capacity ranges from .85 Mcycles (150 A, AC-3, Less than or Equal to440 V) and up to one Mcycle (200 A, AC-1, Less than or Equal to440 V).
  • -Control Circuit Voltage Limits: Compatible within the specified DC range from .75 Uc at -40°C and not exceeding 1.2 Uc in temperatures ranging from -40°C upto70°C.
  • -Maximum Operating Rate: Operates within the specified rate limit of upto1200 cyc/h under conditions not exceeding140°F (60°C).
  • -Rated Insulation Voltage: Power circuit rated insulation voltage stands at600 V CSA & UL; Signalling circuit rated insulation voltage stands at690 V as perIEC standards.
  • -Conventional Free Air Thermal Current : The product's rated current capacity is designed for operation upto200A in environments where temperature does not exceed140°F(60° C).
    • 🏢
