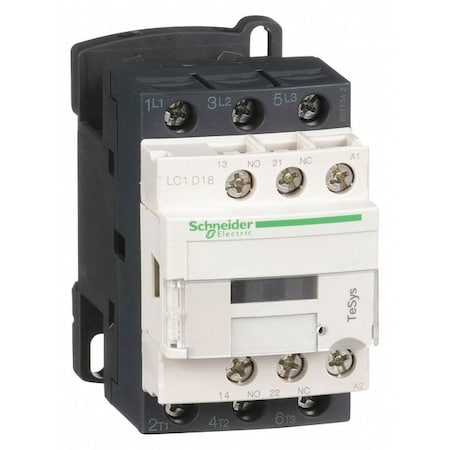

Square D LC1D18T7 - IEC Magnetic Contactor, 1 NC/1 NO, 480 V AC, 3 P, Non-Reversing, Screw Clamp

Square D LC1D18T7 - IEC Magnetic Contactor, 1 NC/1 NO, 480 V AC, 3 P, Non-Reversing, Screw Clamp

Brand: Square D SKU: LC1D18T7
$160.22 USD
$160.22 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The IEC Magnetic Contactor is a 3-pole, non-reversing switching device rated for operation within specified electrical parameters in motor control and resistive-load applications. It includes auxiliary contacts as specified (1NO/1NC), a 480 V AC coil, and a maximum 690 V AC voltage rating. The unit conforms to IEC standards; designed for DIN rail or plate mounting within specified parameters. It may be used without an enclosure; includes a protective cover for added protection. It uses screw clamp terminals and provides 3 normally open main contacts for primary switching; it is rated for operation at 50/60 Hz within the specified voltage ranges; compatible with three-phase systems.

- Action: Non-Reversing

  • - Poles/Main Contacts: 3 poles; 3 normally open main contacts
  • - Auxiliary Contacts: includes auxiliary contacts as specified (1NO/1NC)
  • - Auxiliary Contact Form: 1NC/1NO
  • - Coil Voltage: 480 V AC
  • - Max Voltage Rating: 690 V AC
  • - Contactor Style: IEC; Frame/Series: TeSys Deca
  • - Frequency: 50/60 Hz
  • - Mounting: DIN Rail, Plate
  • - Mounts On: Plate, Rail
  • - Electrical Connection: Screw Clamp Terminals
  • - Enclosure: May be used without enclosure; includes a protective cover for added protection
  • - Includes Protective Cover: Yes
  • - Includes Auxiliary Contacts: Yes
  • - Net Weight: 0.33 kg
  • - Dimensions: Width 1.77 in; Depth 3.38 in; Height 3.03 in
  • - Flammability Rating: complies with UL 94 V1 flammability rating
  • - Connection Type: Screw Clamp
  • - Coil Hold/Operating: 7–7.5 VA hold; 12–22 ms closing, 4–19 ms opening
  • - Standards: UL Listed, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1
  • - Phase: Three
  • - Working Height: Up to 9842.52 ft
    • 🏢
